Actuators
Showing 31–34 of 34 results
-
EH T Series Tie Rod Cylinder 160mm Bore
Select options This product has multiple variants. The options may be chosen on the product page -

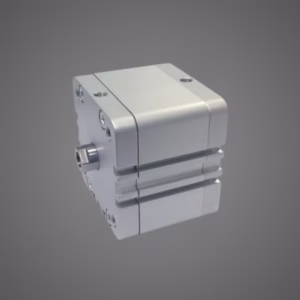

WF Series Compact Pneumatic Actuator – Female Rod End
Select options This product has multiple variants. The options may be chosen on the product page -

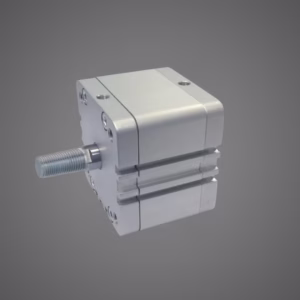

WFM Series Compact Pneumatic Actuator – Male Rod End
Select options This product has multiple variants. The options may be chosen on the product page
Actuator sizing & replacement finder
Find the right size for your application or a suitable replacement for your existing cylinder.
Enter the force or vertical lifting weight, air pressure and travel required. Compare ATS roundline, compact, profile and large-bore tie-rod cylinders.
Ask ATS to check your selection
Copy these details and paste them into our enquiry form. Include any photos or drawings you have.
This is a preliminary static-force estimate. Actual performance also depends on friction, air flow, acceleration, cushioning, mounting and rod buckling. A listed stroke band is a pricing range, not approval of that stroke under load. Ask ATS to confirm the application before ordering.
Size a 90° RE-series rotary actuator by torque, or use the ATS ball-valve guide to prepare an enquiry.
Ask ATS to check the actuator and valve pairing
Torque results are preliminary. A common ISO 5211 flange does not confirm shaft fit or direct mounting: ATS must check the drive, adaptor/bracket, valve operating conditions and spring/fail position before ordering a paired assembly.
Find a replacement cylinder
Use the model on your cylinder label, or measure it to narrow down possible ATS alternatives.
Ask ATS to confirm the replacement
Copy these details into our enquiry form and attach a photo of the cylinder label, mounting and rod end.
Matching bore, stroke and an ISO family narrows the options. Confirm mountings, rod and port threads, sensors, cushioning, materials and working conditions before replacing a cylinder.
