EH T Series Tie Rod Cylinder 160mm Bore

Name: EH T Series Tie Rod Cylinder 160mm Bore
SKU: EH-XXX-XXXX-T
Availability: InStock

Price range: $1,708.50 through $2,982.90 +gst

Bore

Stroke

Clear

Exact Stroke Length (mm) * Enter the exact finished stroke required. The correct price and product code will be selected automatically.

Made to order

This cylinder is manufactured in-house at ATS Pneumatics. Standard production time is usually 3–5 working days.

Urgent / same-day request (+$50.00 +gst) Urgent production is subject to workshop capacity. ATS Pneumatics will confirm availability after the order is received.

Need mountings? Compatible 160 mm mountings are sourced on request. Contact ATS for pricing and availability.

Actuator sizing & replacement finder

Find the right size for your application or a suitable replacement for your existing cylinder.

What would you like to do?

Enter the force or vertical lifting weight, air pressure and travel required. Compare ATS roundline, compact, profile and large-bore tie-rod cylinders.

Load or required force What does this value represent?For horizontal motion, use the force needed to move the load—not its weight. Working pressure at the cylinder (bar)Use the lowest pressure available while operating, rather than the compressor rating. Exact stroke / travel (mm) Which movement does the work? Cylinder style Action required Side load or twisting on the rod?

Force allowances and application details

Additional resistance / acceleration force (N)Add friction, process resistance and acceleration force if known. Exhaust backpressure (bar)Zero assumes free exhaust; flow controls can increase this pressure. Use this percentage of calculated force70% is an adjustable initial sizing allowance, not a measured efficiency or verified safety factor. Travel speed or time Cycles per minute Mounting arrangement

Describe the application

This is a preliminary static-force estimate. Actual performance also depends on friction, air flow, acceleration, cushioning, mounting and rod buckling. A listed stroke band is a pricing range, not approval of that stroke under load. Ask ATS to confirm the application before ordering.

Find a replacement cylinder

Use the model on your cylinder label, or measure it to narrow down possible ATS alternatives.

Read the cylinder label

Brand Complete cylinder model codeUse the model/type code, not a serial number or a short numeric stock number.

Measure your cylinder

Isolate and depressurise the machine before measuring. Do not move an attached load to measure travel.

Cylinder shape ISO standard on the label or documentation?Profile/tie rod: ISO 15552 or ISO 6431. Roundline: ISO 6432. Compact 32 mm and larger: ISO 21287; ATS 25 mm: UNITOP-style geometry.

Measure A between the flat outer end-cap faces, excluding both projecting centring bosses. Measure B across the end cap, not across fittings or sensor brackets.

Bore shown on label (if readable)Bore is the internal piston diameter, not the outside width. B — end-cap width / height (mm)Measure across the end cap, excluding fittings and brackets. Outside size is not bore. A — flat end-face body length (mm)Use the endpoints in the diagram. Length formulas below are Aignep references, not universal across brands. C — smooth rod diameter (mm)Measure the smooth rod, not its thread. Helps separate similar bore sizes. D — mounting-hole centre spacing (mm)Measure horizontally or vertically between adjacent hole centres, not diagonally. Confirmed stroke / rod travel (mm)Enter travel from the label, drawing or a safe measurement. Leave blank to see estimates. Manufacturer of measured cylinderOther ISO cylinders may have different body lengths; an Aignep length estimate needs confirmation. Rod-end thread (if known)Include pitch. Male/female compact threads differ. Air-port thread (if known) Original cylinder features

Matching bore, stroke and an ISO family narrows the options. Confirm mountings, rod and port threads, sensors, cushioning, materials and working conditions before replacing a cylinder.

SKU: EH-XXX-XXXX-T Categories: Actuators, Tie Rod Pneumatic Air Cylinders ISO 6431 Tags: Custom Cylinder, eh-compatible

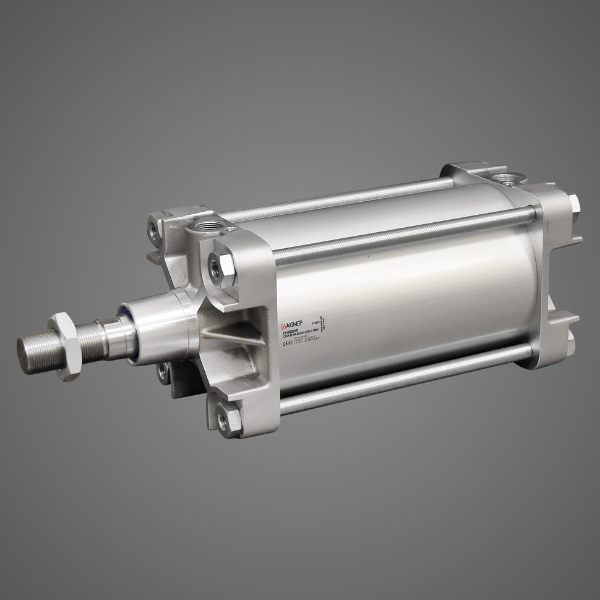

EH T Series ISO 6431 Tie-Rod Pneumatic Cylinder – 160 mm Bore

The EH T series is a large-bore double-acting cylinder for pushing, pulling, lifting and positioning in machinery and industrial automation. Compressed air powers the rod in both directions, with adjustable pneumatic cushioning at each end.

Every EH T cylinder is made in-house at ATS Pneumatics in Christchurch, whether you choose a common stroke length or enter a custom measurement. Configure your exact stroke online, view the price and order your cylinder.

Choose your exact cylinder size

The bore is fixed at 160 mm.
Choose a common stroke length or enter your exact stroke in whole millimetres within the online range.
Contact ATS for compatible mountings if required.

Review your selection and add the cylinder to your cart.

Features and specifications

Mounting dimensions: ISO 6431.
Bore size: 160 mm only.
Online stroke range: exact strokes up to 1,000 mm, subject to the available range shown in the configurator.
Operation: double acting, with a single piston rod.
Rod diameter: 40 mm.
Rod thread: M36 × 2, male.
Air ports: G 3/4.
Working pressure: 1–10 bar.
Temperature range: 0 to +80°C; down to −20°C with dry air.
Air supply: filtered compressed air, lubricated or non-lubricated.
Cushioning: adjustable pneumatic cushioning at both ends.
Position sensing: magnetic piston for compatible sensors fitted with the appropriate external mounting adapter.
Construction: anodised aluminium tube, aluminium end caps, external steel tie rods and a chrome-plated steel piston rod.
Seal materials: polyurethane working seals with NBR O-rings for the standard version.

The overview displays the key specifications for your selected stroke. The technical catalogue includes the dimensional drawing, mounting measurements, force references and air-consumption information.

Mountings and accessories

Compatible 160 mm mountings are sourced on request. ATS does not currently stock these mountings. Contact us for pricing, availability and lead time, and let us know the mounting arrangement required.

Mountings, rod-end accessories, position sensors and sensor mounting adapters are additional items. Our team can help confirm the accessories suited to your installation.

In-house manufacture and delivery

Standard production is usually 3–5 working days, with delivery time additional. An urgent or same-day production request is available through the configurator, subject to workshop capacity and ATS confirmation. Mounting procurement lead time is separate. We supply customers throughout New Zealand and can assist with replacement cylinders, custom strokes and application requirements.

Technical downloads

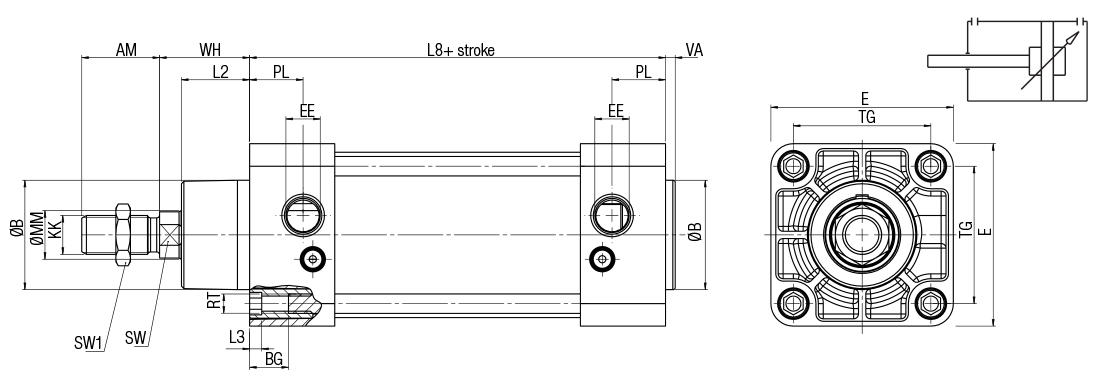

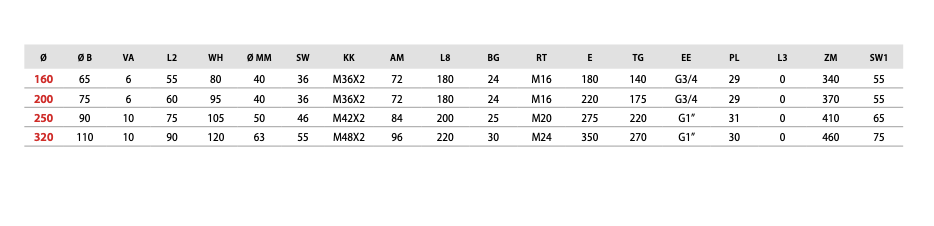

Download the ATS EH T 160 mm Technical Catalogue for dimensional drawings, mounting measurements, operating specifications, force references and air-consumption information.

Choose your exact stroke to download a dimension sheet for your finished size. The sheet uses your physical stroke and the single-rod EH T drawing.

Need help choosing a cylinder?

Use Find your actuator size for an initial sizing estimate, or contact ATS to discuss your load, air pressure, required travel, operating speed and mounting arrangement. Our team can help confirm the cylinder, cushioning and accessories suited to your application.

Bore	160 mm
