Pin for VCF Mount

Name: Pin for VCF Mount
SKU: VPE
Availability: InStock

Price range: $13.74 through $24.21 +gst

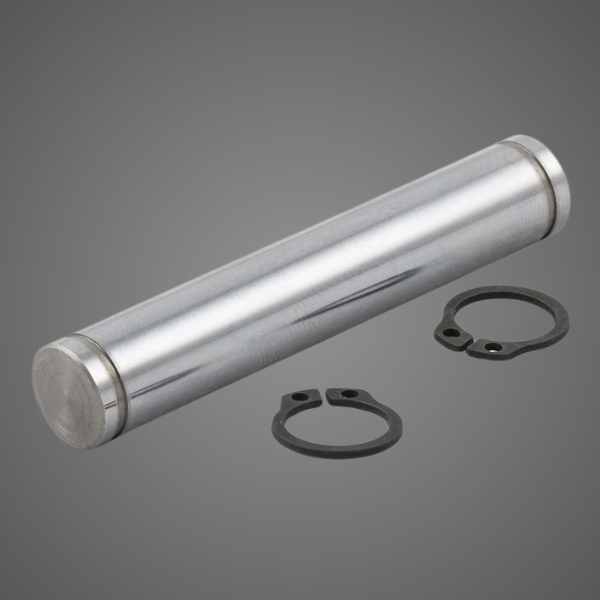

The Aignep VPE pivot pin is used with a matched VCF rear clevis assembly and the appropriate retaining-ring arrangement.

Range: Aignep VPE.
Material: steel.
Application: matched VCF clevis assemblies.
Retention: retaining-ring grooves.

Available Options

SKU	Bore Size	Stock	Price	Quantity
VPE032	32mm	Availability: 2 in stock	$13.74 +gst	Pin for VCF Mount quantity
VPE040	40mm	Availability: 10 in stock	$14.57 +gst	Pin for VCF Mount quantity
VPE050	50mm	Availability: 9 in stock	$15.00 +gst	Pin for VCF Mount quantity
VPE063	63mm	Availability: 9 in stock	$20.35 +gst	Pin for VCF Mount quantity
VPE080	80mm	Availability: 10 in stock	$22.14 +gst	Pin for VCF Mount quantity
VPE100	100mm	Availability: 11 in stock	$17.20 +gst	Pin for VCF Mount quantity
VPE125	125mm	Availability: 2 in stock	$24.21 +gst	Pin for VCF Mount quantity

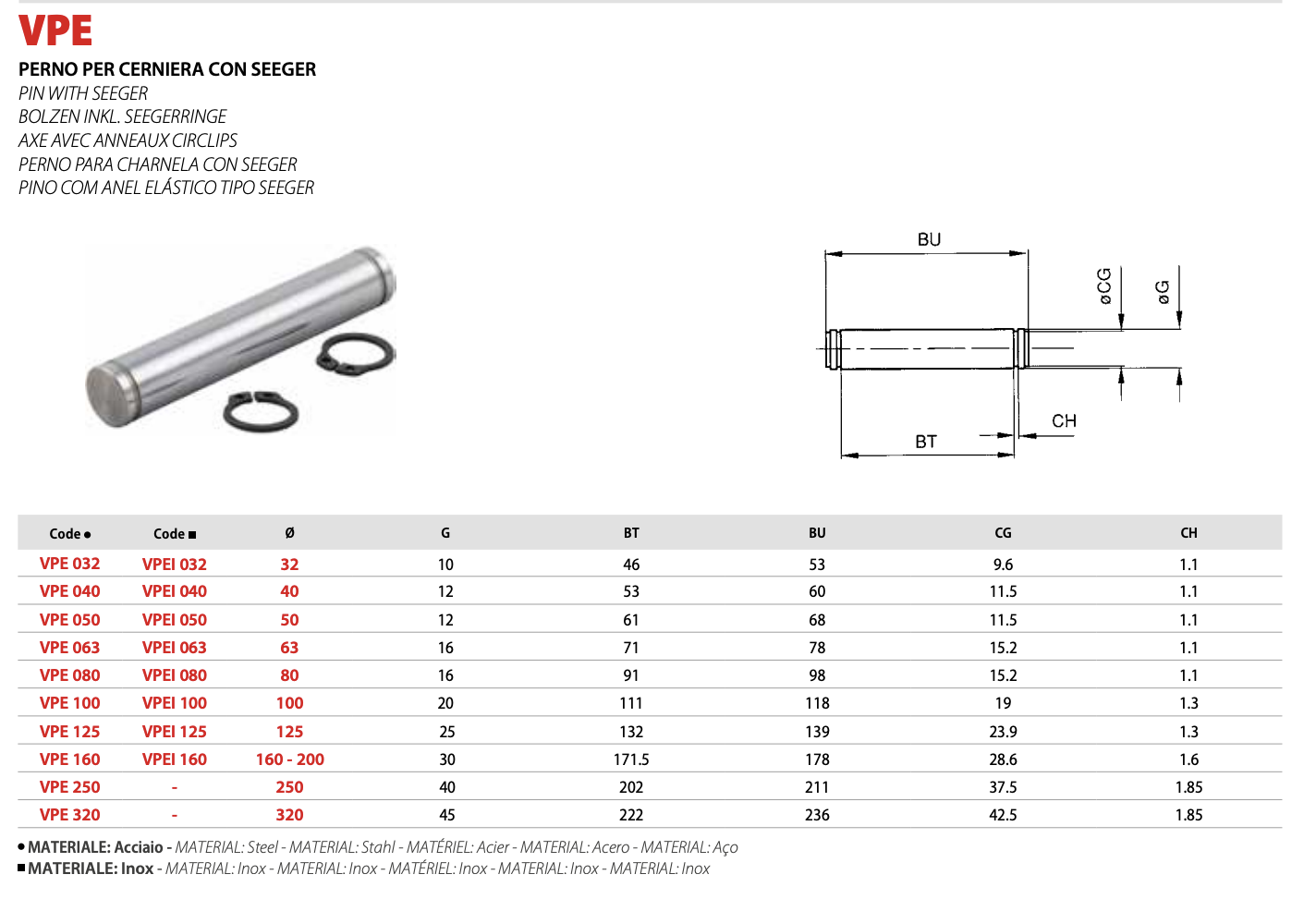

Match the pin diameter, bearing span, overall length and retaining grooves to the actual VCF clevis and mating component.

A matching bore-size label alone is not enough to confirm fit to another manufacturer’s mounting.

Contact ATS with the clevis code and mating-component dimensions. Our Christchurch team can help confirm a suitable pin and retention arrangement.

Bore Size	32mm, 40mm, 50mm, 63mm, 80mm, 100mm, 125mm
