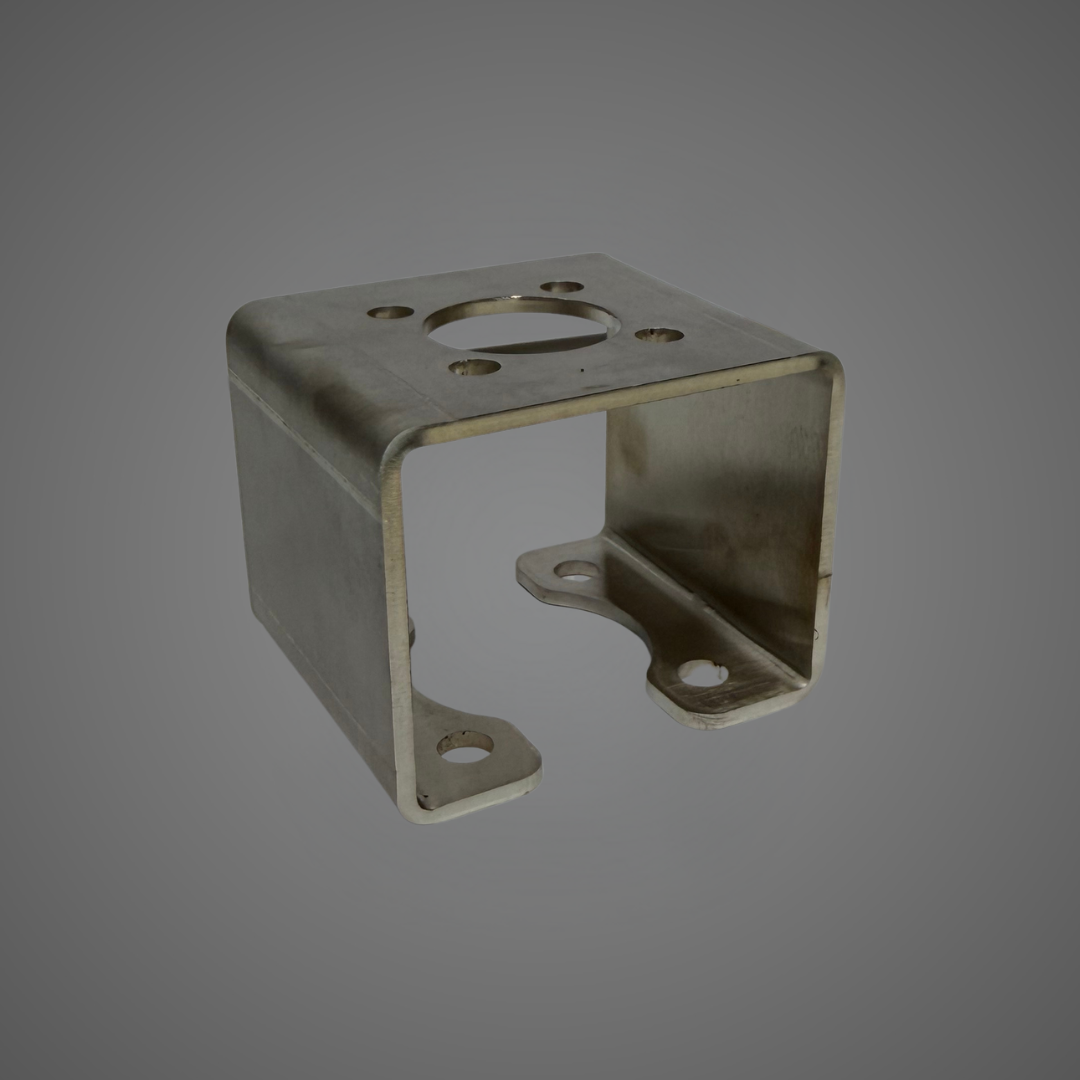

Rotary Actuator Mounting Bracket
The Alpha BKF bracket provides a raised mounting arrangement between an actuator and a mating component in an ISO 5211 assembly. Its stainless steel construction and defined flange patterns help create the space needed for a suitable shaft coupling and mounting arrangement.
Check the complete mounting arrangement
Match the patterns on both mating components and check bracket height, shaft-coupling length, engagement and clearance. A shared F05 or F07 label alone does not confirm that a complete actuator, bracket and valve assembly will fit. These BKF brackets are separate from the bracket supplied for Alpha KN switch-box assemblies.
Technical downloads and help
See the ATS Alpha Mounting Accessories Catalogue for the dimensional drawing and full BKF range. Contact ATS with both flange patterns and the required mounting height for help selecting a bracket.
