Narrow Male Hinge with Articulated Head

Name: Narrow Male Hinge with Articulated Head
SKU: VCS
Availability: InStock

Price range: $100.85 through $194.87 +gst

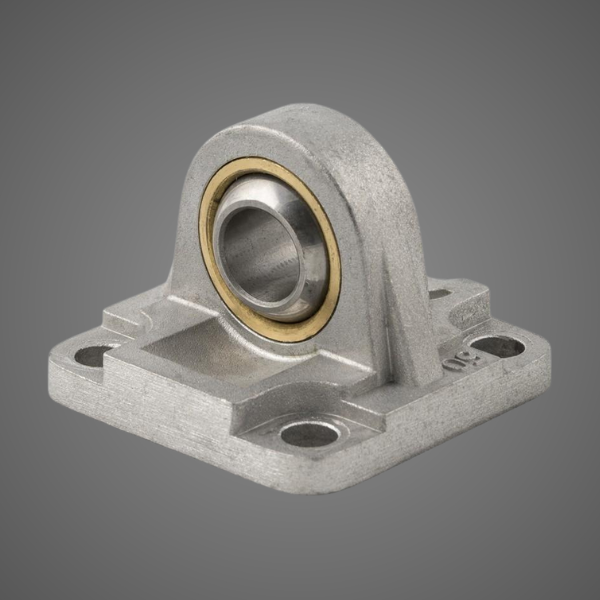

The Aignep VCS narrow male hinge incorporates an articulated head for a compatible cylinder mounting arrangement.

Range: Aignep VCS.
Material: aluminium.
Head reference: DIN 648K articulated-head arrangement.

Available Options

SKU	Bore Size	Stock	Price	Quantity
VCS032	32mm	Availability: 2 in stock	$100.85 +gst	Narrow Male Hinge with Articulated Head quantity
VCS040	40mm	Availability: 2 in stock	$103.70 +gst	Narrow Male Hinge with Articulated Head quantity
VCS050	50mm	Availability: 3 in stock	$137.25 +gst	Narrow Male Hinge with Articulated Head quantity
VCS063	63mm	Availability: 3 in stock	$151.69 +gst	Narrow Male Hinge with Articulated Head quantity
VCS080	80mm	Out of stock	$186.76 +gst	Narrow Male Hinge with Articulated Head quantity
VCS100	100mm	Availability: 1 in stock	$194.87 +gst	Narrow Male Hinge with Articulated Head quantity

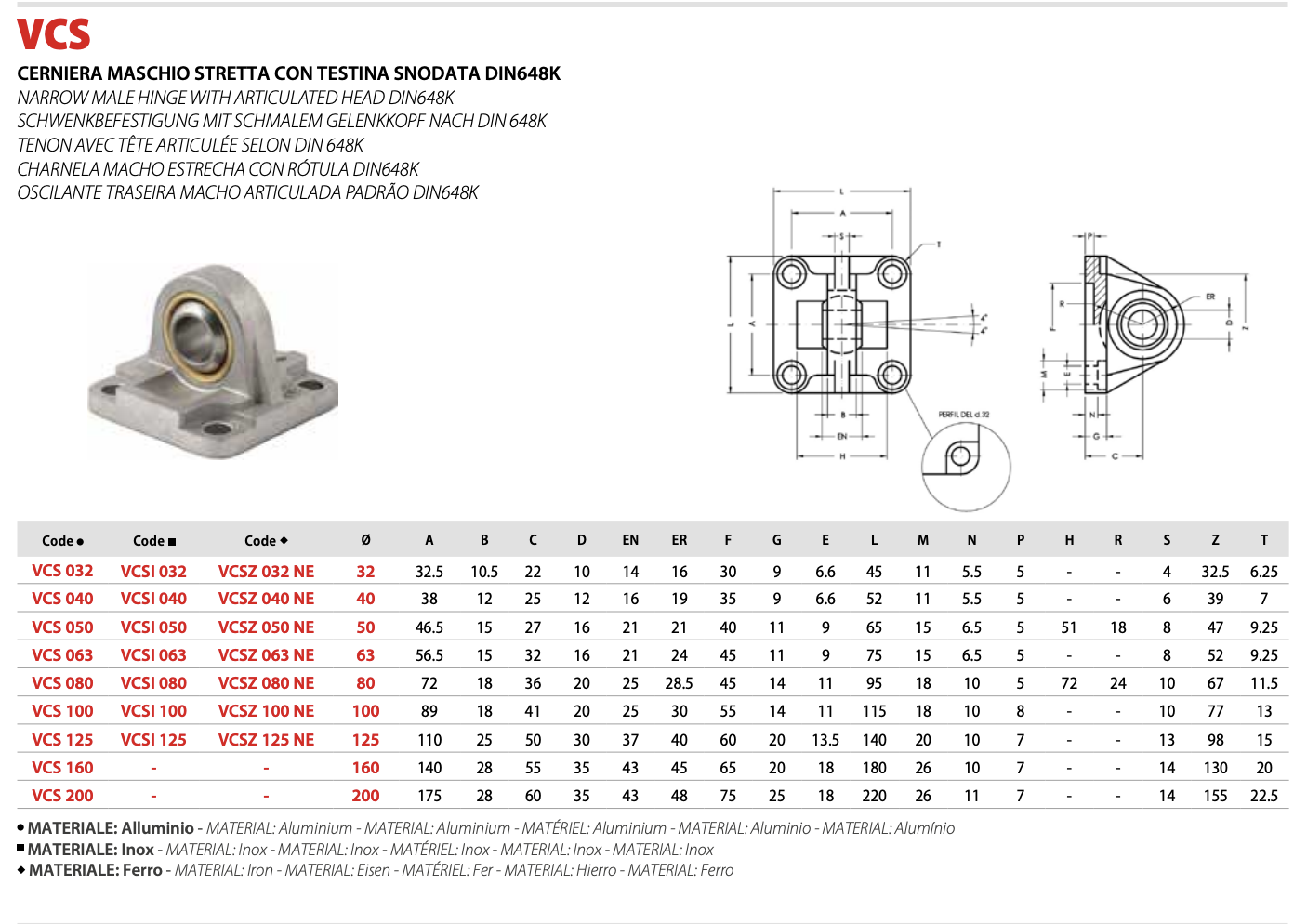

Match the cylinder’s end mounting pattern and articulated-head dimensions. Confirm the mating support, pin, mounting width and available movement.

Compatible options shown in the cylinder configurator are priced separately.

Contact ATS with your cylinder series, bore and mating-support details. Our Christchurch team can help confirm a suitable arrangement.

Bore Size	32mm, 40mm, 50mm, 63mm, 80mm, 100mm
