Flange Mount
,

Flange Mount

Price range: $64.35 through $645.82 +gst

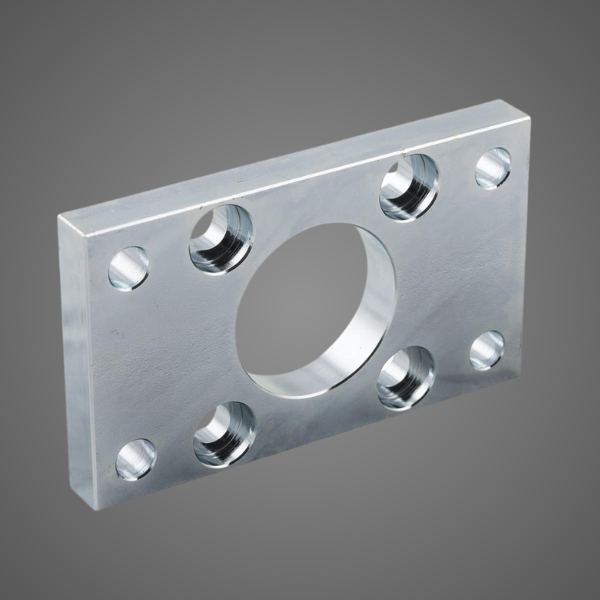

The Aignep VFL flange provides a fixed mounting arrangement for a compatible pneumatic cylinder.

Features and specifications

Range: Aignep VFL.
Material: steel.
Mounting arrangement: flange mount.

See the ATS Aignep Cylinder Mounting Accessories Catalogue

SKU: VFL Categories: , Tags: , , , ,

Available Options

ThumbnailSKUBore SizeStockPriceQuantity
VFL03232mm

Availability: 2 in stock

$64.35 +gst
VFL04040mm

Availability: 4 in stock

$73.71 +gst
VFL05050mm

Availability: 2 in stock

$83.07 +gst
VFL06363mm

Availability: 2 in stock

$92.42 +gst
VFL08080mm

Availability: 2 in stock

$162.28 +gst
VFL100100mm

Availability: 4 in stock

$209.86 +gst
VFL125125mm

Availability: 1 in stock

$645.82 +gst

Flange Mount — Aignep VFL



Choose the correct mounting

Match the cylinder’s end mounting pattern, centre opening and machine fixing dimensions. Confirm the front or rear mounting position and the required rod clearance.

Compatible options shown in the cylinder configurator are priced separately.

Technical downloads

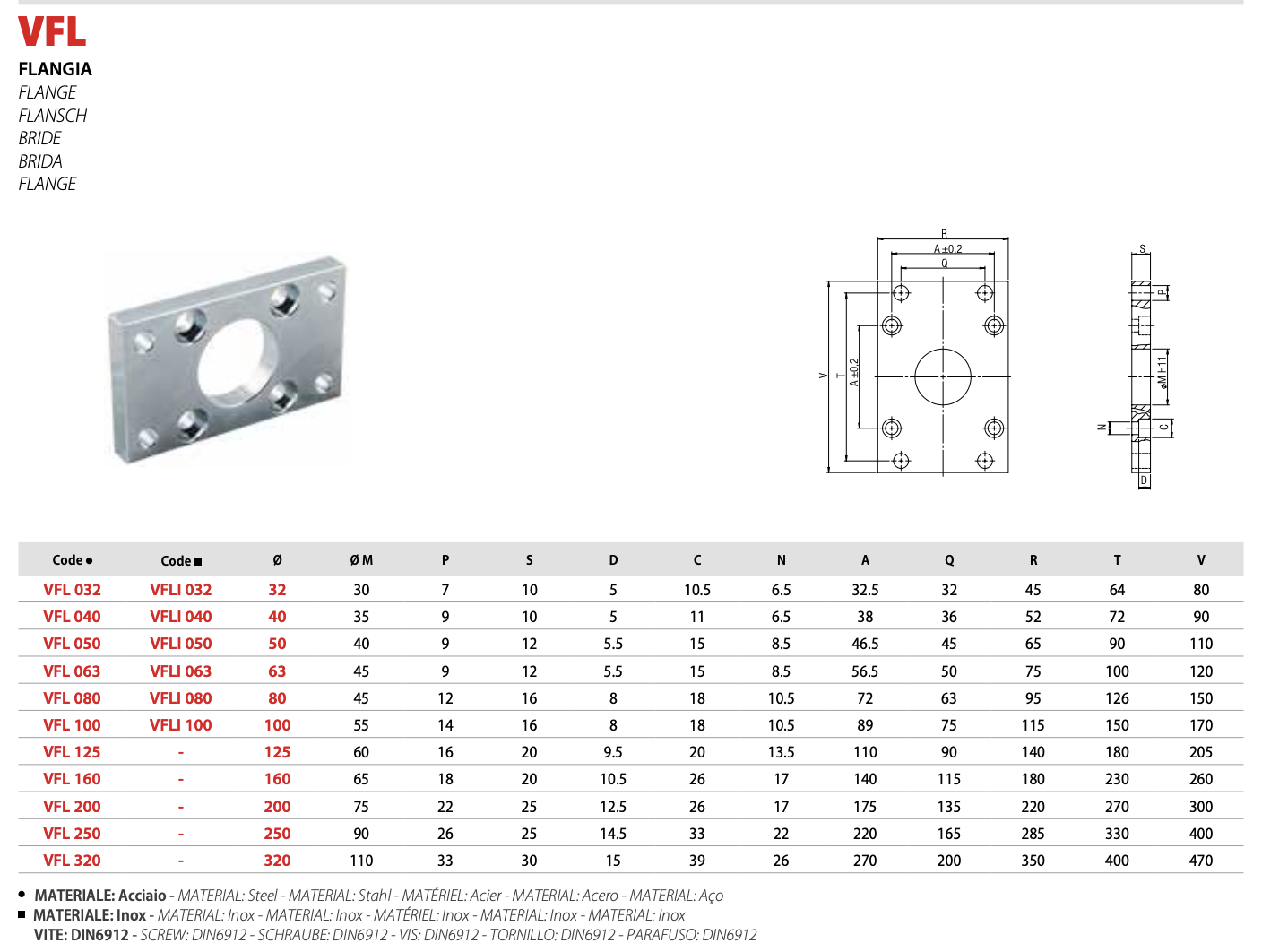

See the ATS Aignep Cylinder Mounting Accessories Catalogue for dimensional drawings and measurements.

Need help selecting a mounting?

Contact ATS with your cylinder series, bore and mounting position. Our Christchurch team can help confirm the correct flange for your installation.

Bore Size

32mm, 40mm, 50mm, 63mm, 80mm, 100mm, 125mm
