Alpha Rotary Actuator Double-Flat / Oval Adaptor

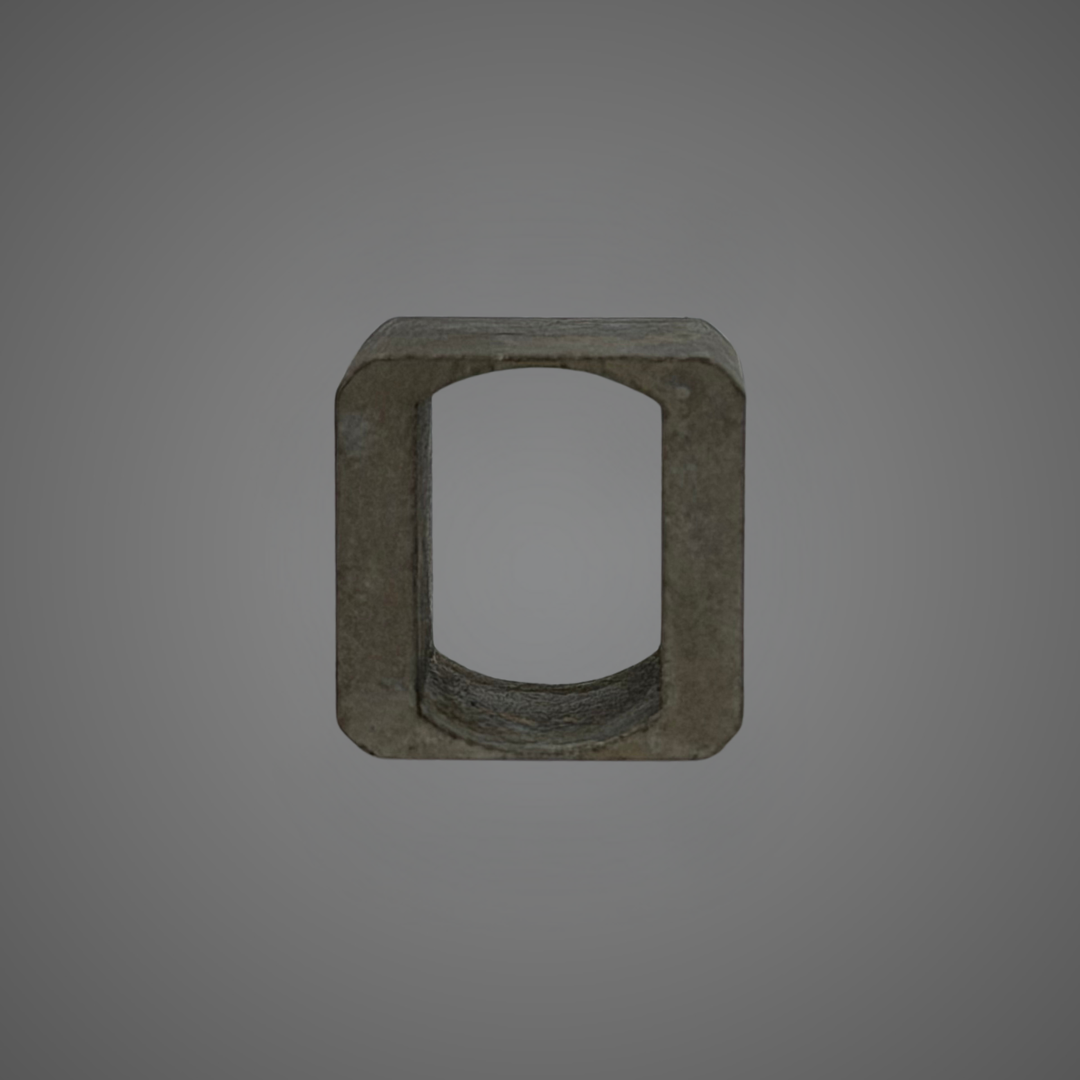

The Q-DD adaptor connects a square actuator drive to a double-flat valve stem. Often described as an oval adaptor, this range must be selected using the complete stem profile, including the distance across the flats and the curved diameter.
| ATS option | Actuator square A | Across flats C | Profile diameter D | Length L |
|---|---|---|---|---|
| RQDD1408-A | 14 | 8 | 12 | 16 |
| RQDD1710 | 17 | 10 | 16 | 17 |
Choose the correct profile
RQDD1408-A matches a 14 mm actuator square; RQDD1710 matches a 17 mm square. These correspond to the standard drives of RE064 and RE076/RE086 respectively. Check the fitted shaft if your actuator has an optional drive. The shorthand labels “14-8” and “17-10” do not describe every valve-side measurement.
Technical downloads and help
See the ATS RE Mounting Accessories Catalogue for the Q-DD drawing. Send ATS the actuator drive size and a measurement or drawing of the valve stem to confirm the correct adaptor.
