Rear Clevis Mount Male

Name: Rear Clevis Mount Male
SKU: VCM
Availability: InStock

Price range: $66.42 through $372.00 +gst

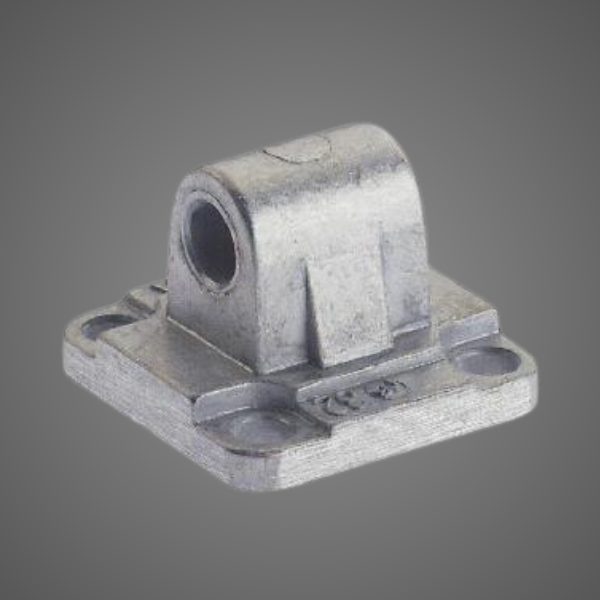

The Aignep VCM male rear clevis provides a pivoting mounting connection for a compatible pneumatic cylinder body.

Range: Aignep VCM.
Material: aluminium.
Mounting arrangement: male rear clevis.

Available Options

SKU	Bore Size	Stock	Price	Quantity
VCM032	32mm	Availability: 3 in stock	$66.42 +gst	Rear Clevis Mount Male quantity
VCM040	40mm	Availability: 5 in stock	$69.04 +gst	Rear Clevis Mount Male quantity
VCM050	50mm	Availability: 5 in stock	$72.68 +gst	Rear Clevis Mount Male quantity
VCM063	63mm	Availability: 6 in stock	$101.37 +gst	Rear Clevis Mount Male quantity
VCM080	80mm	Availability: 5 in stock	$134.23 +gst	Rear Clevis Mount Male quantity
VCM100	100mm	Availability: 2 in stock	$136.05 +gst	Rear Clevis Mount Male quantity
VCM125	125mm	Availability: 1 in stock	$372.00 +gst	Rear Clevis Mount Male quantity

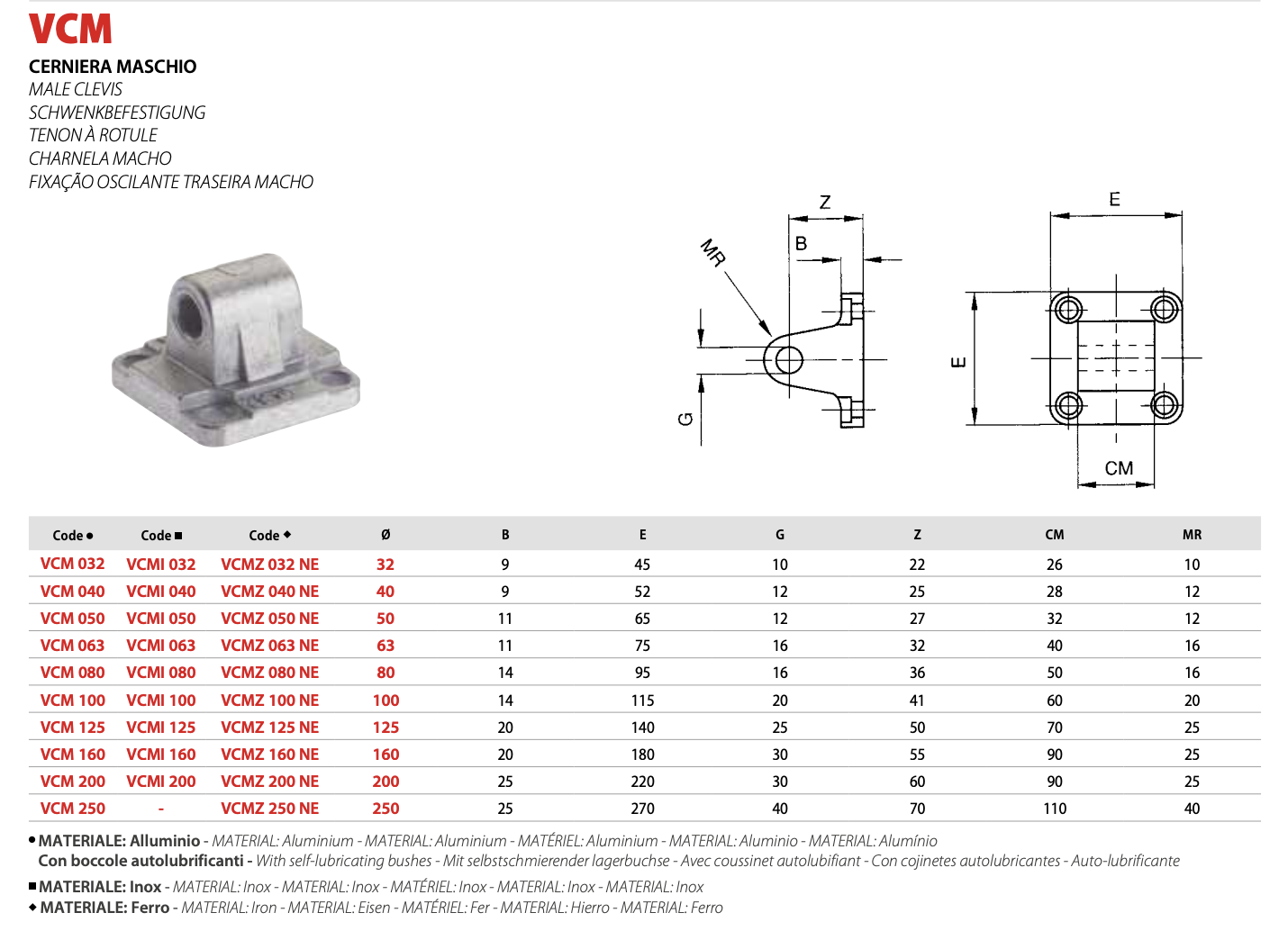

Check the cylinder’s end mounting pattern, pivot diameter and mating female support. Confirm the pin and retention arrangement separately.

Compatible options shown in the cylinder configurator are priced separately.

Contact ATS with your cylinder series, bore and mating-support details. Our Christchurch team can help confirm the required clevis and pin.

Bore Size	32mm, 40mm, 50mm, 63mm, 80mm, 100mm, 125mm
