Centre Trunnion Support
Centre Trunnion Support - Image 2
,

Centre Trunnion Support

Price range: $81.70 through $105.00 +gst

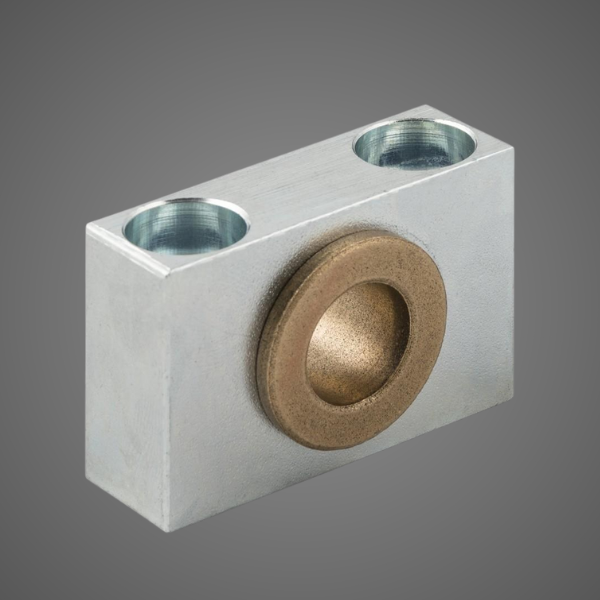

The Aignep VSI support is used with a compatible intermediate hinge or trunnion mounting arrangement.

Features and specifications

Range: Aignep VSI.
Material: steel.
Application: support for a matched cylinder trunnion.

See the ATS Aignep Cylinder Mounting Accessories Catalogue

SKU: VSI Categories: , Tags: , ,

Available Options

ThumbnailSKUBore SizeStockPriceQuantity
VSI03232mm

Availability: 2 in stock

$86.22 +gst
VSI04040mm & 50mm

Availability: 6 in stock

$81.70 +gst
VSI06363mm & 80mm

Availability: 2 in stock

$91.90 +gst
VSI100100mm & 125mm

Availability: 2 in stock

$105.00 +gst

Centre Trunnion Support — Aignep VSI



Choose the correct support

Aignep recommends VSI supports for compatible VCNT, XCN, VCNL and VCNF arrangements. Check the actual trunnion diameter, support spacing and machine fixing dimensions.

A complete installation may require paired supports. The support does not replace the cylinder’s trunnion mounting.

Technical downloads

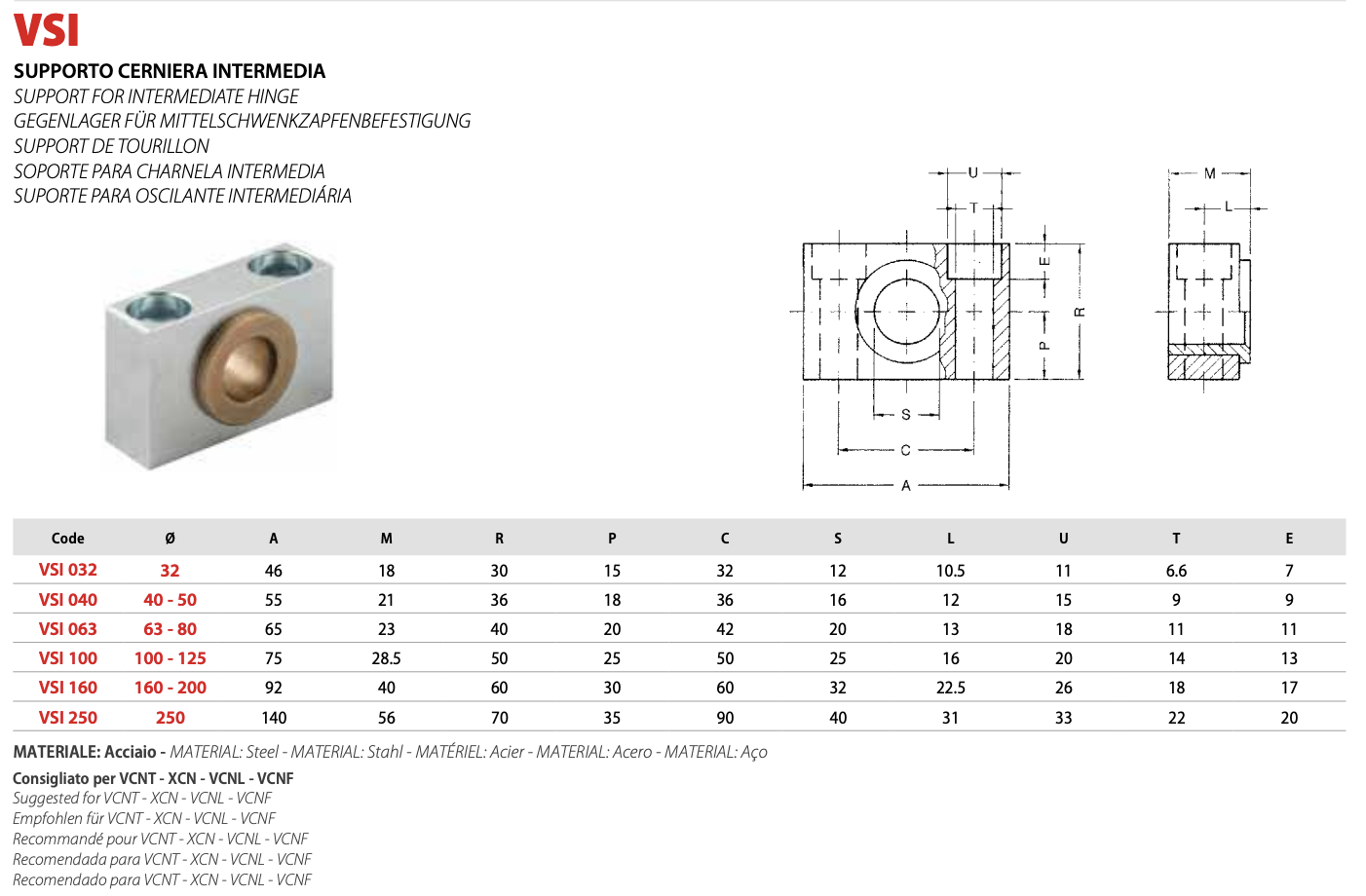

See the ATS Aignep Cylinder Mounting Accessories Catalogue for support drawings and measurements.

Need help selecting a support?

Contact ATS with the cylinder series, bore and trunnion code. Our Christchurch team can help confirm the correct supports and quantities.

Bore Size

100mm & 125mm, 40mm & 50mm, 63mm & 80mm, 32mm
