Mini Series Flange Mount

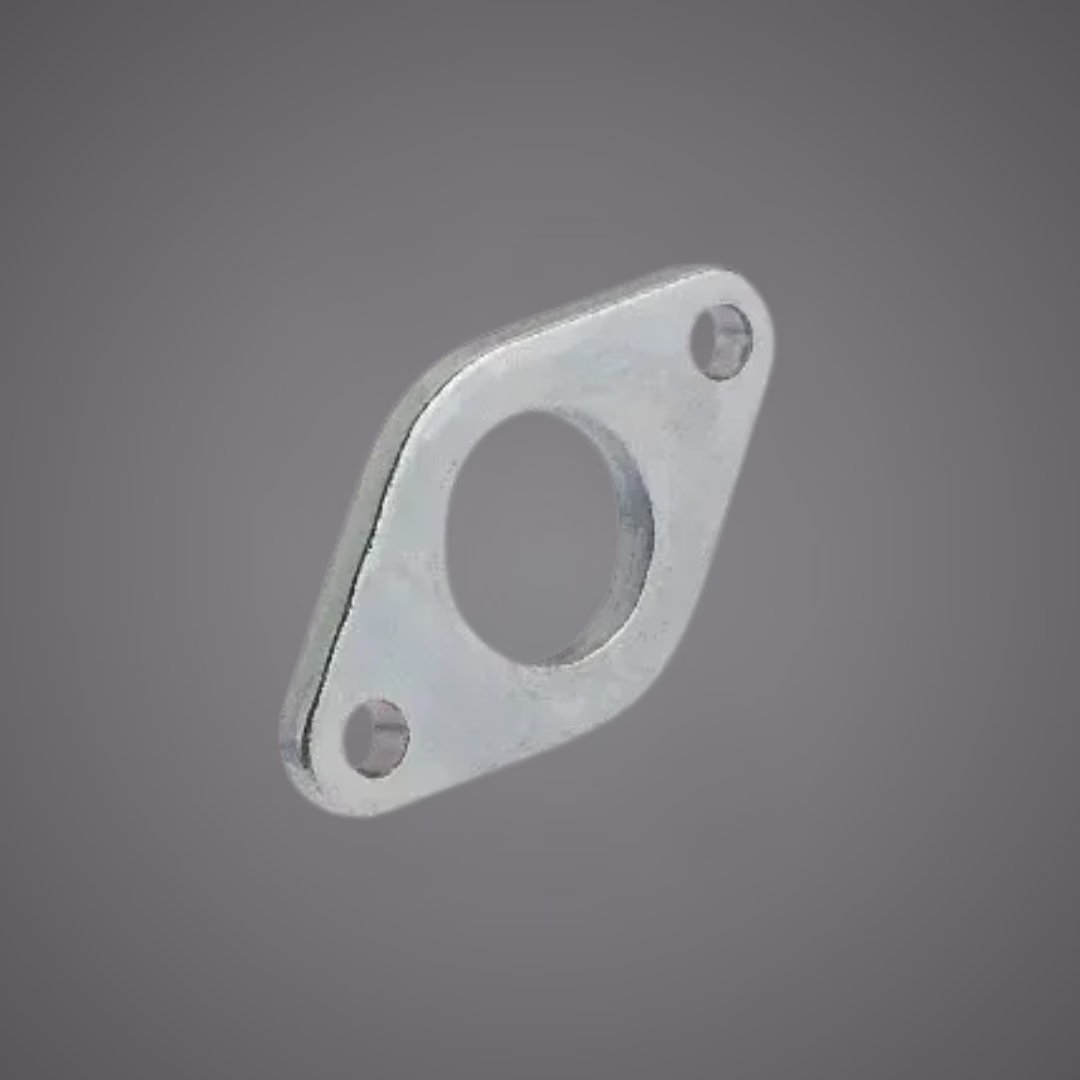

Mini Series Flange Mount — Aignep MFL

Choose the correct mounting

Match the cylinder’s end mounting thread and flange dimensions. Confirm the required front or rear mounting position and the machine’s fixing-hole layout.

Compatible options shown in the cylinder configurator are priced separately.

Technical downloads

See the ATS Aignep Cylinder Mounting Accessories Catalogue for dimensional drawings and measurements.

Need help selecting a mounting?

Contact ATS with your cylinder series, bore, stroke and mounting position. Our Christchurch team can help confirm the correct option for NZ-wide supply.
