Spherical Rod Eye

Name: Spherical Rod Eye
SKU: TF
Availability: InStock

Price range: $46.62 through $480.11 +gst

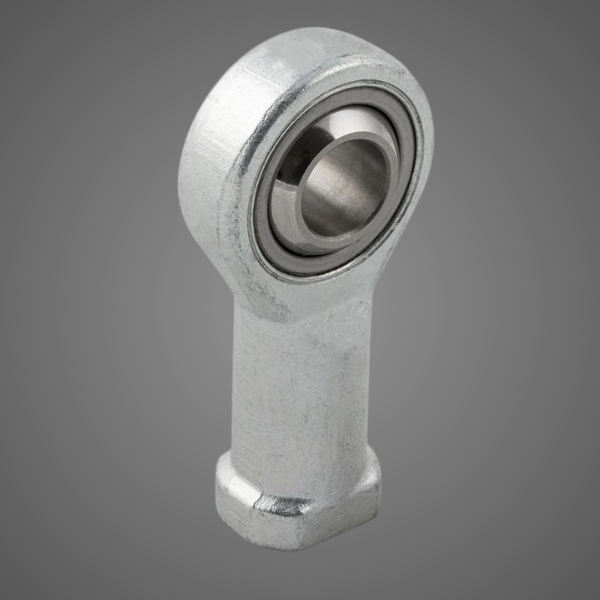

The Aignep TF threaded spherical rod eye accommodates angular movement at the cylinder rod-to-load connection.

Range: Aignep TF.
Material: steel.
Bearing: self-lubricating spherical rod end.
Connection: threaded cylinder-rod fitting.

Available Options

SKU	Bore Size	Thread Size	Stock	Price	Quantity
TF025	25mm & 32mm	M10 × 1.25	Availability: 1 in stock	$46.62 +gst	Spherical Rod Eye quantity
TF040	40mm	M12 × 1.25	Availability: 4 in stock	$71.65 +gst	Spherical Rod Eye quantity
TF050	50mm & 63mm	M16 × 1.5	Out of stock	$89.54 +gst	Spherical Rod Eye quantity
TF080	80mm & 100mm	M20 × 1.5	Availability: 4 in stock	$186.76 +gst	Spherical Rod Eye quantity
TF125	125mm	M27 × 2	Availability: 2 in stock	$480.11 +gst	Spherical Rod Eye quantity

Match the rod thread and spherical-bearing bore to the mating pin. Check the available movement and surrounding clearance.

A spherical joint allows angular movement but does not make an unguided cylinder suitable for excessive side loading.

Contact ATS with your cylinder series, rod thread and mating-pin size. Our Christchurch team can help confirm a suitable connection.

Bore Size	25mm & 32mm, 50mm & 63mm, 80mm & 100mm, 40mm, 125mm
Thread Size	M10 × 1.25, M12 × 1.25, M16 × 1.5, M20 × 1.5, M27 × 2
