Front Rod Clevis
Front Rod Clevis - Image 2
,

Front Rod Clevis

Price range: $9.35 through $80.58 +gst

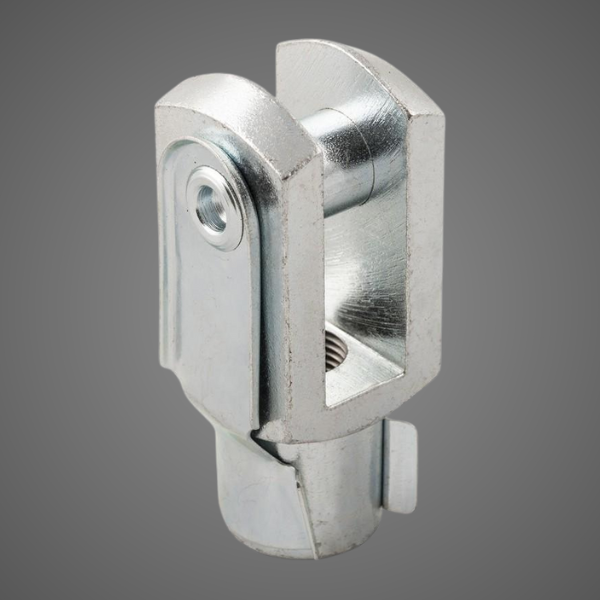

The Aignep FC threaded rod clevis connects a compatible cylinder rod to a pivoting load.

Features and specifications

Range: Aignep FC.
Material: steel.
Connection: threaded cylinder-rod fitting.

See the ATS Aignep Cylinder Mounting Accessories Catalogue

SKU: FC Categories: , Tags: , , ,

Available Options

ThumbnailSKUBore SizeThread SizeStockPriceQuantity
FC02020mmM8 × 1.25

Out of stock

$13.74 +gst
FC05050mm & 63mmM16 × 1.5

Availability: 17 in stock

$54.88 +gst
FC08080mm & 100mmM20 × 1.5

Availability: 8 in stock

$80.58 +gst
FC02525mm & 32mmM10 × 1.25

Availability: 16 in stock

$14.45 +gst
FC04040mmM12 × 1.25

Availability: 7 in stock

$27.10 +gst
FC01212mm & 16mmM6 × 1

Out of stock

$9.35 +gst

Front Rod Clevis — Aignep FC



Choose the correct mounting

Select by rod thread first, then check the pin diameter, clevis width and mating component. The product-code suffix is a model reference and does not guarantee compatibility with every cylinder of that bore.

Confirm the required pin and retention arrangement. Compatible options shown in the cylinder configurator are priced separately.

Technical downloads

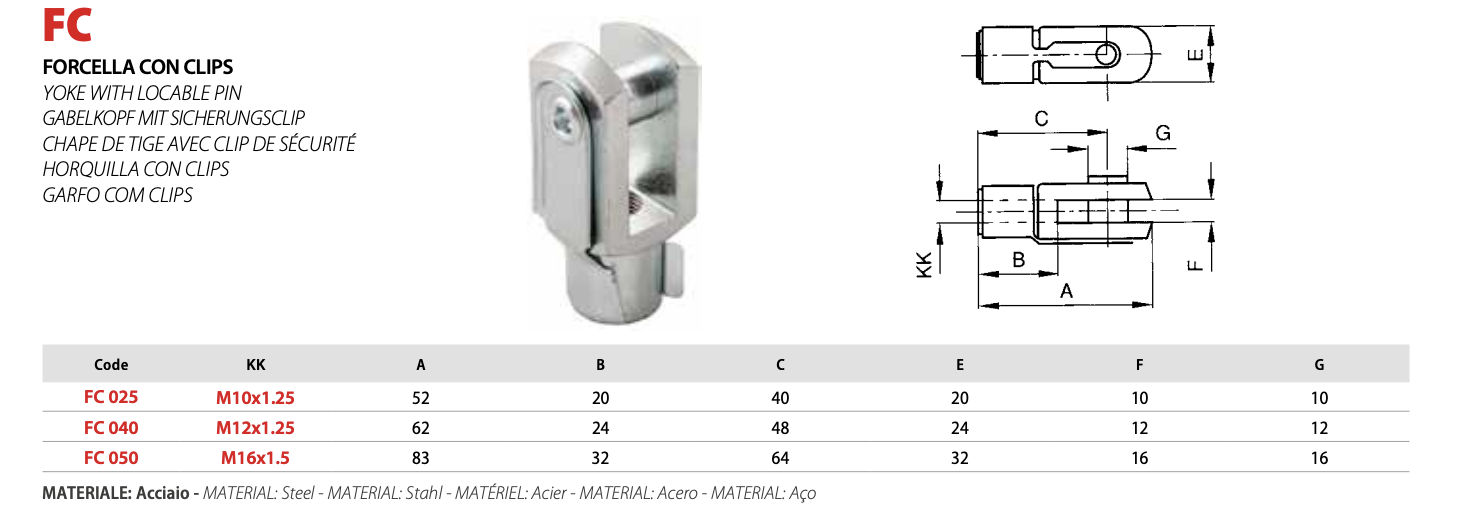

See the ATS Aignep Cylinder Mounting Accessories Catalogue for dimensional drawings and measurements.

Need help selecting a mounting?

Contact ATS with your cylinder series, bore and rod-thread size. Our Christchurch team can help confirm a suitable clevis and mating arrangement.

Bore Size

12mm & 16mm, 20mm, 25mm & 32mm, 50mm & 63mm, 80mm & 100mm, 40mm
Thread Size

M10 × 1.25, M12 × 1.25, M16 × 1.5, M20 × 1.5, M6 × 1, M8 × 1.25
