Actuators, Ready Made Actuators (on the shelf), Round Pneumatic Air Cylinder ISO 6432

MF Series Double Acting Round Pneumatic Air Cylinder ISO 6432 (Ready Made on the Shelf)

Name: MF Series Double Acting Round Pneumatic Air Cylinder ISO 6432 (Ready Made on the Shelf)
SKU: MF-XXX-XXXX
Availability: InStock

Price range: $134.25 through $271.07 +gst

SKU: MF-XXX-XXXX Categories: Actuators, Round Pneumatic Air Cylinder ISO 6432, Ready Made Actuators (on the shelf) Tag: MF Compatible

Choose your stocked actuator

Select an available size to see its price and stock status.

Bore Size

Stroke Length

Clear

Mounting Options

Select any compatible mountings required. You can choose more than one option in each section.

Front Mounting

Select bore first.

Rear Mounting

Select bore first.

Centre Mounting

Select bore first.

Actuator sizing & replacement finder

Find the right size for your application or a suitable replacement for your existing cylinder.

What would you like to do?

Enter the force or vertical lifting weight, air pressure and travel required. Compare ATS roundline, compact, profile and large-bore tie-rod cylinders.

Load or required force What does this value represent?For horizontal motion, use the force needed to move the load—not its weight. Working pressure at the cylinder (bar)Use the lowest pressure available while operating, rather than the compressor rating. Exact stroke / travel (mm) Which movement does the work? Cylinder style Action required Side load or twisting on the rod?

Force allowances and application details

Additional resistance / acceleration force (N)Add friction, process resistance and acceleration force if known. Exhaust backpressure (bar)Zero assumes free exhaust; flow controls can increase this pressure. Use this percentage of calculated force70% is an adjustable initial sizing allowance, not a measured efficiency or verified safety factor. Travel speed or time Cycles per minute Mounting arrangement

Describe the application

This is a preliminary static-force estimate. Actual performance also depends on friction, air flow, acceleration, cushioning, mounting and rod buckling. A listed stroke band is a pricing range, not approval of that stroke under load. Ask ATS to confirm the application before ordering.

Find a replacement cylinder

Use the model on your cylinder label, or measure it to narrow down possible ATS alternatives.

Read the cylinder label

Brand Complete cylinder model codeUse the model/type code, not a serial number or a short numeric stock number.

Measure your cylinder

Isolate and depressurise the machine before measuring. Do not move an attached load to measure travel.

Cylinder shape ISO standard on the label or documentation?Profile/tie rod: ISO 15552 or ISO 6431. Roundline: ISO 6432. Compact 32 mm and larger: ISO 21287; ATS 25 mm: UNITOP-style geometry.

Measure A between the flat outer end-cap faces, excluding both projecting centring bosses. Measure B across the end cap, not across fittings or sensor brackets.

Bore shown on label (if readable)Bore is the internal piston diameter, not the outside width. B — end-cap width / height (mm)Measure across the end cap, excluding fittings and brackets. Outside size is not bore. A — flat end-face body length (mm)Use the endpoints in the diagram. Length formulas below are Aignep references, not universal across brands. C — smooth rod diameter (mm)Measure the smooth rod, not its thread. Helps separate similar bore sizes. D — mounting-hole centre spacing (mm)Measure horizontally or vertically between adjacent hole centres, not diagonally. Confirmed stroke / rod travel (mm)Enter travel from the label, drawing or a safe measurement. Leave blank to see estimates. Manufacturer of measured cylinderOther ISO cylinders may have different body lengths; an Aignep length estimate needs confirmation. Rod-end thread (if known)Include pitch. Male/female compact threads differ. Air-port thread (if known) Original cylinder features

Matching bore, stroke and an ISO family narrows the options. Confirm mountings, rod and port threads, sensors, cushioning, materials and working conditions before replacing a cylinder.

Available Options

SKU	Bore Size	Stroke Length	Stock	Price	Quantity
MF0250010	25mm	10mm	Availability: 2 in stock	$160.91 +gst	MF Series Double Acting Round Pneumatic Air Cylinder ISO 6432 (Ready Made on the Shelf) quantity
MF0250025	25mm	25mm	Availability: 1 in stock	$134.25 +gst	MF Series Double Acting Round Pneumatic Air Cylinder ISO 6432 (Ready Made on the Shelf) quantity
MF0250050	25mm	50mm	Availability: 4 in stock	$169.71 +gst	MF Series Double Acting Round Pneumatic Air Cylinder ISO 6432 (Ready Made on the Shelf) quantity
MF0250080	25mm	80mm	Availability: 1 in stock	$180.58 +gst	MF Series Double Acting Round Pneumatic Air Cylinder ISO 6432 (Ready Made on the Shelf) quantity
MF0250100	25mm	100mm	Availability: 1 in stock	$195.01 +gst	MF Series Double Acting Round Pneumatic Air Cylinder ISO 6432 (Ready Made on the Shelf) quantity
MF0250125	25mm	125mm	Availability: 2 in stock	$158.31 +gst	MF Series Double Acting Round Pneumatic Air Cylinder ISO 6432 (Ready Made on the Shelf) quantity
MF0250150	25mm	150mm	Out of stock	$221.17 +gst	MF Series Double Acting Round Pneumatic Air Cylinder ISO 6432 (Ready Made on the Shelf) quantity
MF0250160	25mm	160mm	Availability: 2 in stock	$227.89 +gst	MF Series Double Acting Round Pneumatic Air Cylinder ISO 6432 (Ready Made on the Shelf) quantity
MF0250200	25mm	200mm	Availability: 2 in stock	$235.18 +gst	MF Series Double Acting Round Pneumatic Air Cylinder ISO 6432 (Ready Made on the Shelf) quantity
MF0250250	25mm	250mm	Availability: 2 in stock	$235.45 +gst	MF Series Double Acting Round Pneumatic Air Cylinder ISO 6432 (Ready Made on the Shelf) quantity
MF0250320	25mm	320mm	Availability: 1 in stock	$271.07 +gst	MF Series Double Acting Round Pneumatic Air Cylinder ISO 6432 (Ready Made on the Shelf) quantity

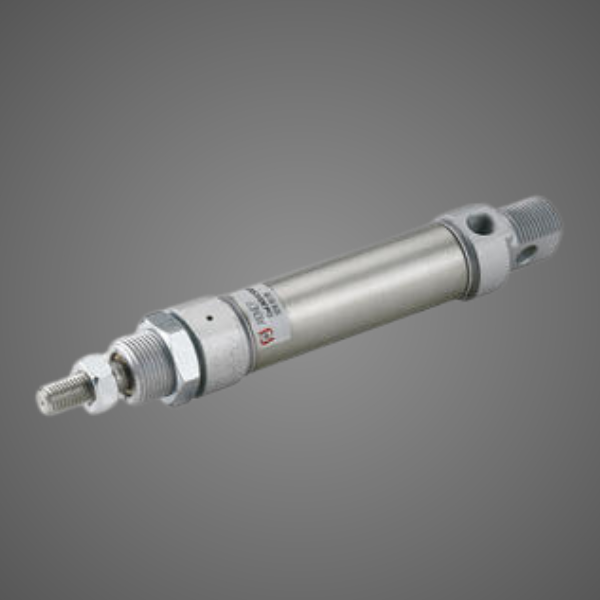

MF Series ISO 6432 Round Pneumatic Cylinder – Ready Made

The MF series is a slim double-acting cylinder for pushing, pulling and positioning in machinery and automation systems.

These ready-made Aignep cylinders are supplied from ATS Pneumatics stock in Christchurch. Choose a listed fixed stroke, check its price and availability, and order online. For a different bore or stroke, contact ATS about our separate made-to-order cylinder range.

Choose your stocked cylinder size

Select the bore and an available fixed stroke.
Select any compatible mounting options shown.
Review the selected cylinder’s price and stock status, set your quantity and add it to your cart. The ready-made product does not accept an entered custom stroke.

Features and specifications

Standard: ISO 6432.
Bore currently listed: 25 mm.
Fixed strokes currently listed: 10, 25, 50, 80, 100, 125, 150, 160, 200, 250 and 320 mm.
Operation: double acting, with a single piston rod.
Position sensing: magnetic piston; external sensor mounting required.
Working pressure: 1-10 bar.
Temperature range: 0 to +80 degrees C; down to -20 degrees C with dry air.
Air supply: filtered compressed air, lubricated or non-lubricated.
Cushioning: elastic end bumpers.
Construction: stainless steel barrel and rod, with aluminium ends.

The overview shows the selected bore, fixed stroke, rod diameter, rod thread, air ports and retracted overall length. The dimension sheet calculates the stroke-dependent drawing measurements for the actual stock variation.

Mountings and accessories

Compatible mounting choices appear after selecting your bore and are priced separately. Position sensors and their mounting hardware are additional items; ask ATS to confirm the sensor and bracket for your application.

Stock availability and delivery

Check the selected variation’s live availability before ordering. Ready-made units are supplied from stock when available, with delivery time additional. ATS supplies customers throughout New Zealand and can help with replacement cylinders and application requirements.

Technical downloads

Use the Downloads section above for the ATS MF Ready-Made Technical Catalogue, the ATS Aignep Cylinder Mounts Catalogue and the selected cylinder’s Dimension Sheet. The catalogue contains operating specifications, dimensional drawings, fixed-size measurements and manufacturer force references.

Need help choosing a cylinder?

Use Actuator sizing & replacement finder for an initial sizing estimate, or contact ATS with your load, air pressure, travel, operating speed and mounting requirements.

Bore Size	25mm
Stroke Length	10mm, 25mm, 50mm, 80mm, 100mm, 125mm, 150mm, 160mm, 200mm, 250mm, 320mm
