LH Series Double Acting Profile Pneumatic Air Rams ISO 15552

Price range: $300.93 through $3,874.24 +gst

Enter the exact finished stroke required. The correct price and product code will be selected automatically.
Made to order

This cylinder is manufactured in-house at ATS Pneumatics. Standard production time is usually 3–5 working days.

Urgent production is subject to workshop capacity. ATS Pneumatics will confirm availability after the order is received.

Mounting Options

Select any compatible mountings required. You can choose more than one option in each section.

Front Mounting

Select bore first.

Rear Mounting

Select bore first.

Centre Mounting

Select bore first.

Actuator sizing & replacement finder

Find the right size for your application or a suitable replacement for your existing cylinder.

Enter the force or vertical lifting weight, air pressure and travel required. Compare ATS roundline, compact, profile and large-bore tie-rod cylinders.

Force allowances and application details

This is a preliminary static-force estimate. Actual performance also depends on friction, air flow, acceleration, cushioning, mounting and rod buckling. A listed stroke band is a pricing range, not approval of that stroke under load. Ask ATS to confirm the application before ordering.

LH Series ISO 15552 Profile Pneumatic Cylinder

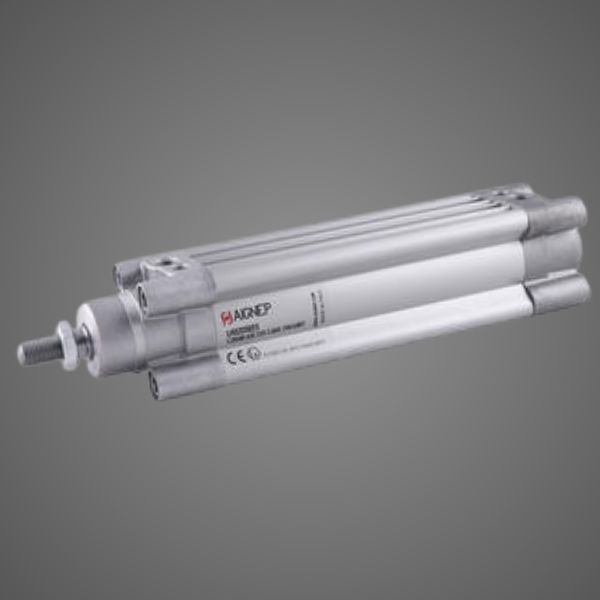

The LH series is a versatile double-acting cylinder for pushing, pulling, lifting and positioning in machinery and automation systems.

Every LH cylinder is made in-house at ATS Pneumatics in Christchurch, whether you choose a common stroke length or enter a custom measurement. Configure your cylinder online, view the price and select compatible mountings before ordering.

Choose your exact cylinder size

Select the bore to suit your required force.
Choose a common stroke length or enter your exact stroke in whole millimetres.
Select any compatible mountings required.

Review your selection and add the cylinder to your cart.

Features and specifications

Standard: ISO 15552.
Bore sizes: 32, 40, 50, 63, 80, 100 and 125 mm.
Operation: double acting, with a single piston rod.

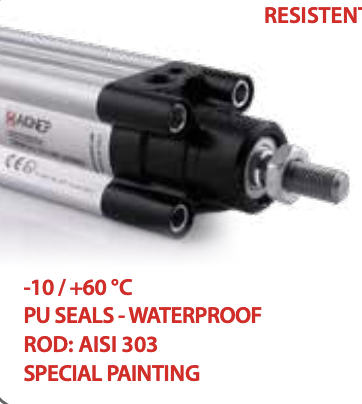

Seal version: polyurethane (PU).
Working pressure: 1–10 bar.
Temperature range: −20 to +80°C for the PU version.
Air supply: filtered compressed air, lubricated or non-lubricated.
Cushioning: adjustable pneumatic cushioning at both ends.
Position sensing: magnetic piston with profile slots for compatible sensors.
Construction: anodised aluminium profile with black-finished end caps.

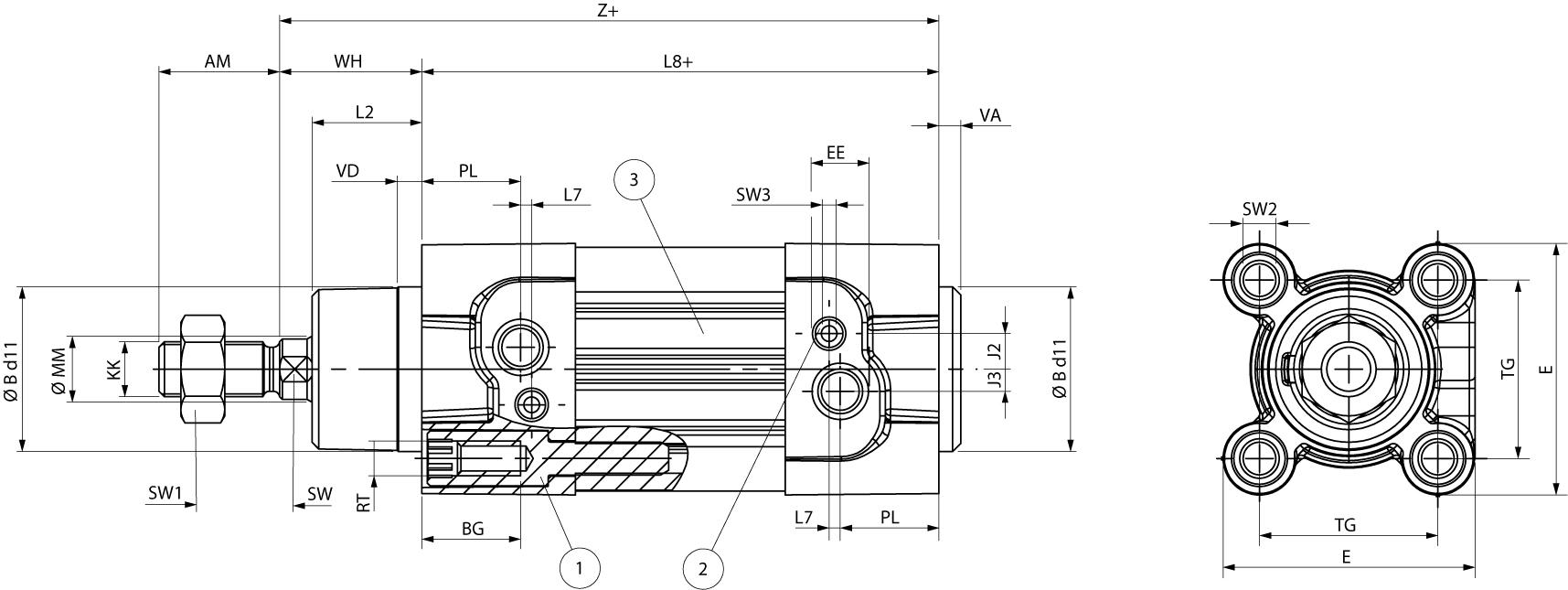

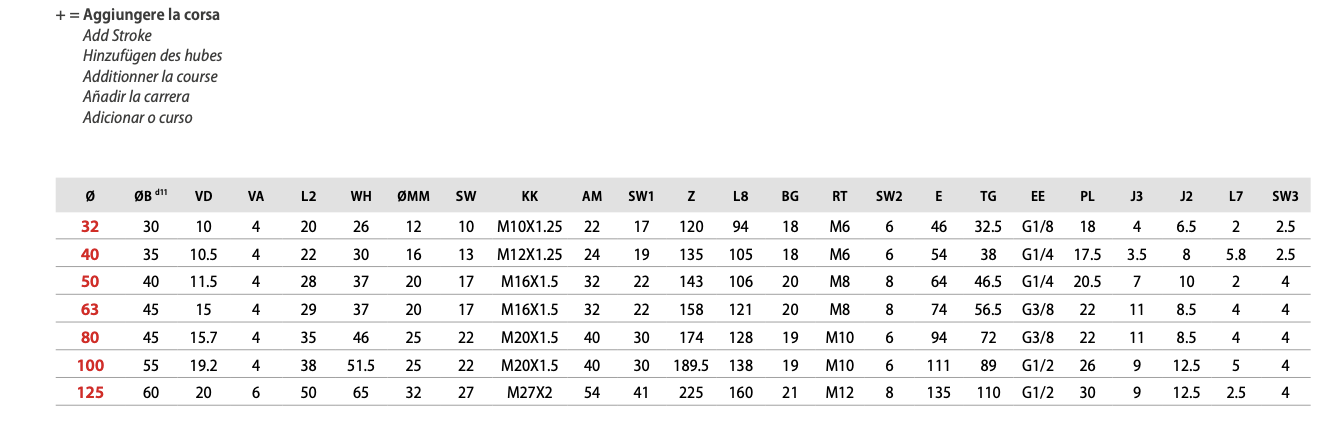

Rod diameter, rod thread, air-port size and mounting dimensions vary by bore. The overview displays the key dimensions for your selected bore; the technical catalogue includes the full dimensional drawing and tables.

Mountings and accessories

Compatible front, rear and centre mounting options appear after selecting your bore. Mountings are priced separately, and more than one can be selected where required. Position sensors are additional items. Contact ATS for help selecting sensors or mounting arrangements for your application.

In-house manufacture and delivery

Standard production is usually 3–5 working days, with delivery time additional. An urgent or same-day production request is available through the configurator, subject to workshop capacity and ATS confirmation. We supply customers throughout New Zealand and can assist with replacement cylinders, custom strokes and application requirements.

Technical downloads

Download the ATS LH Series Technical Catalogue, the ATS Aignep Cylinder Mounts Catalogue for dimensional drawings, bore-specific measurements, operating specifications, force tables and air-consumption information.

Need help choosing a cylinder?

Use Find your actuator size for an initial sizing estimate, or contact ATS to discuss your load, air pressure, required travel, operating speed and mounting arrangement. Our team can help confirm the cylinder and accessories suited to your application.
