Mini Series Clevis Bracket with Pin
,

Mini Series Clevis Bracket with Pin

Price range: $10.87 through $39.75 +gst

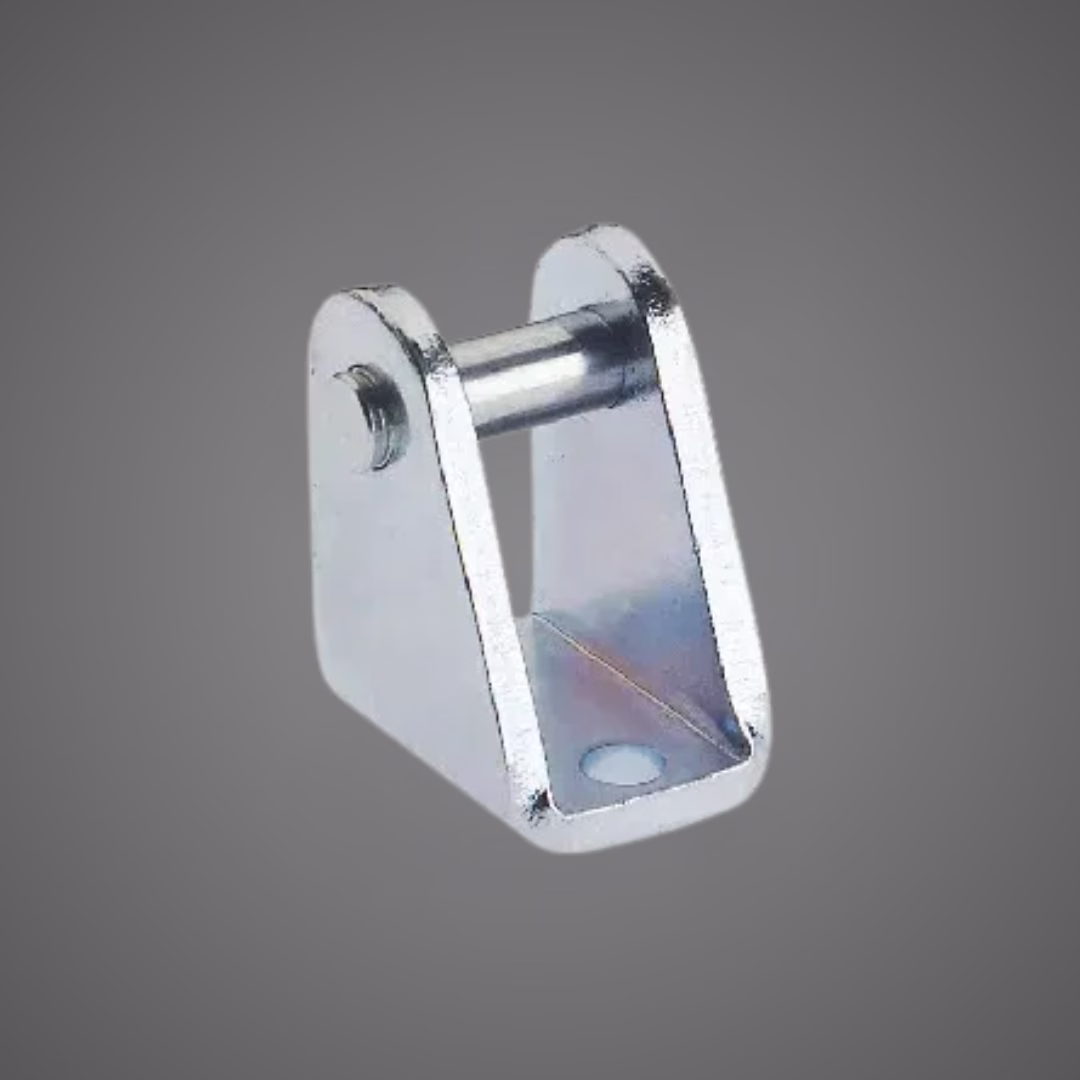

The Aignep MCC clevis bracket provides a rear pivot mounting for a compatible roundline pneumatic cylinder, with the required pin and retention arrangement.

Features and specifications

Range: Aignep MCC.
Material: steel.
Mounting arrangement: rear pivot bracket with pin.

See the ATS Aignep Cylinder Mounting Accessories Catalogue

SKU: MCC Categories: , Tags: , ,

Available Options

ThumbnailSKUBore SizeStockPriceQuantity
MCC01212mm & 16mm

Availability: 6 in stock

$10.87 +gst
MCC02020mm & 25mm

Availability: 36 in stock

$39.75 +gst

Mini Series Clevis Bracket with Pin — Aignep MCC

Choose the correct mounting

Check the cylinder’s rear-eye dimensions, pin diameter and bracket clearance. The 012 and 020 models each cover two bore sizes.

Compatible options shown in the cylinder configurator are priced separately. Confirm the mating dimensions when replacing a mounting from another cylinder brand.

Technical downloads

See the ATS Aignep Cylinder Mounting Accessories Catalogue for dimensional drawings and measurements.

Need help selecting a mounting?

Contact ATS with your cylinder series, bore, stroke and mounting arrangement. Our Christchurch team can help identify suitable mounts and mating components for NZ-wide supply.

Bore Size

12mm & 16mm, 20mm & 25mm
