Ready Made Actuators (on the shelf), Rotary Actuators

Rotary Acuator Double Acting

Name: Rotary Acuator Double Acting
SKU: RE-DA
Availability: InStock

Price range: $312.59 through $955.00 +gst

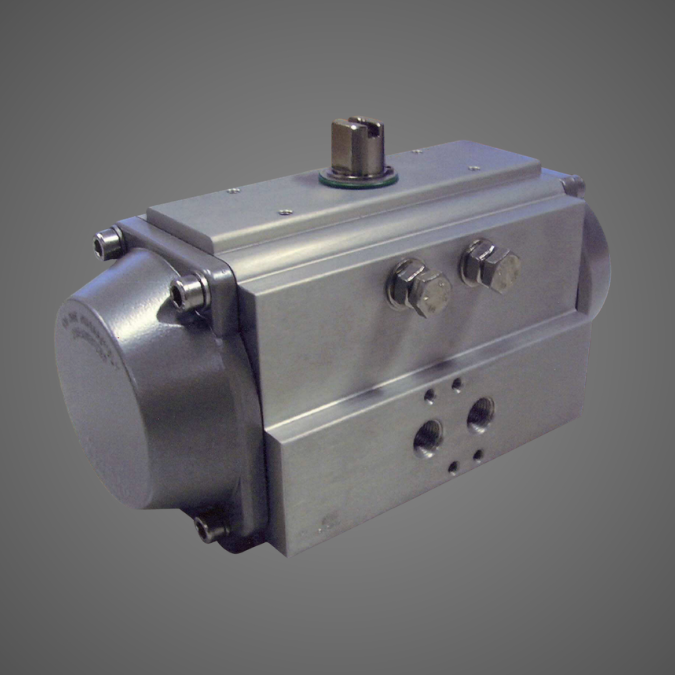

ATS Pneumatics double acting rotary actuators are pneumatic rack-and-pinion actuators designed for reliable quarter-turn valve automation. Based on the Alpha Pompe RE Series, they feature external travel adjustment for precise valve positioning and smooth bi-directional pneumatic operation.

Manufactured with hard anodised extruded aluminium bodies, nickel-plated steel shafts, and ISO 5211 / NAMUR compatibility, these actuators are suitable for ball valves, butterfly valves, and industrial process automation applications.

SKU: RE-DA Categories: Ready Made Actuators (on the shelf), Rotary Actuators

Choose your stocked actuator

Select an available size to see its price and stock status.

Bore Size

Connection

Clear

Actuator sizing & replacement finder

Find the right size for your application or a suitable replacement for your existing cylinder.

What would you like to do?

Enter the force or vertical lifting weight, air pressure and travel required. Compare ATS roundline, compact, profile and large-bore tie-rod cylinders.

Load or required force What does this value represent?For horizontal motion, use the force needed to move the load—not its weight. Working pressure at the cylinder (bar)Use the lowest pressure available while operating, rather than the compressor rating. Exact stroke / travel (mm) Which movement does the work? Cylinder style Action required Side load or twisting on the rod?

Force allowances and application details

Additional resistance / acceleration force (N)Add friction, process resistance and acceleration force if known. Exhaust backpressure (bar)Zero assumes free exhaust; flow controls can increase this pressure. Use this percentage of calculated force70% is an adjustable initial sizing allowance, not a measured efficiency or verified safety factor. Travel speed or time Cycles per minute Mounting arrangement

Describe the application

This is a preliminary static-force estimate. Actual performance also depends on friction, air flow, acceleration, cushioning, mounting and rod buckling. A listed stroke band is a pricing range, not approval of that stroke under load. Ask ATS to confirm the application before ordering.

Find a replacement cylinder

Use the model on your cylinder label, or measure it to narrow down possible ATS alternatives.

Read the cylinder label

Brand Complete cylinder model codeUse the model/type code, not a serial number or a short numeric stock number.

Measure your cylinder

Isolate and depressurise the machine before measuring. Do not move an attached load to measure travel.

Cylinder shape ISO standard on the label or documentation?Profile/tie rod: ISO 15552 or ISO 6431. Roundline: ISO 6432. Compact 32 mm and larger: ISO 21287; ATS 25 mm: UNITOP-style geometry.

Measure A between the flat outer end-cap faces, excluding both projecting centring bosses. Measure B across the end cap, not across fittings or sensor brackets.

Bore shown on label (if readable)Bore is the internal piston diameter, not the outside width. B — end-cap width / height (mm)Measure across the end cap, excluding fittings and brackets. Outside size is not bore. A — flat end-face body length (mm)Use the endpoints in the diagram. Length formulas below are Aignep references, not universal across brands. C — smooth rod diameter (mm)Measure the smooth rod, not its thread. Helps separate similar bore sizes. D — mounting-hole centre spacing (mm)Measure horizontally or vertically between adjacent hole centres, not diagonally. Confirmed stroke / rod travel (mm)Enter travel from the label, drawing or a safe measurement. Leave blank to see estimates. Manufacturer of measured cylinderOther ISO cylinders may have different body lengths; an Aignep length estimate needs confirmation. Rod-end thread (if known)Include pitch. Male/female compact threads differ. Air-port thread (if known) Original cylinder features

Matching bore, stroke and an ISO family narrows the options. Confirm mountings, rod and port threads, sensors, cushioning, materials and working conditions before replacing a cylinder.

Available Options

SKU	Bore Size	Connection	Stock	Price	Quantity
RE051DA	51mm	F04	Availability: 2 in stock	$312.59 +gst	Rotary Acuator Double Acting quantity
RE064DA	64mm	F05/F07	Availability: 2 in stock	$356.92 +gst	Rotary Acuator Double Acting quantity
RE076DA	76mm	F05/F07	Availability: 3 in stock	$489.71 +gst	Rotary Acuator Double Acting quantity
RE086DA	86mm	F05/F07	Availability: 2 in stock	$510.80 +gst	Rotary Acuator Double Acting quantity
RE101DA	101mm	F07/F10	Availability: 2 in stock	$955.00 +gst	Rotary Acuator Double Acting quantity

RE Series Double-Acting Rotary Actuator

The RE series is a rack-and-pinion rotary actuator for opening, closing and positioning quarter-turn valves in machinery and process systems.

Alpha Pompe / Alphair RE actuators are supplied by ATS Pneumatics from Christchurch stock. Select a listed actuator size to see its price and availability. Compressed air powers movement in both directions; this double-acting version has no spring-return action on air loss.

Choose your actuator size

Select the RE actuator size to suit the required valve torque.
Check the mounting connection, fitted drive and any adaptor or bracket required.
Review the selected actuator’s price and stock status, set your quantity and add it to your cart. Size selection must be based on torque and mounting fit; valve nominal size alone does not confirm a suitable actuator.

Features and specifications

Operation: double-acting rack and pinion.
Size range: RE051, RE064, RE076, RE086 and RE101; online choices follow the published stock variations.
Rotation: 90 degrees.
Travel adjustment: external adjustment of +/-5 degrees at both ends.
Supply rating: 8 bar continuous; 10 bar maximum.
Standard temperature range: -20 to +80 degrees C.
Standard seals: NBR.
Air supply: filtered compressed air, dry or lubricated.
Valve mounting: ISO 5211, with the fitted connection to be confirmed.
Solenoid/accessory interfaces: NAMUR VDI/VDE 3845.
Construction: hard-anodised aluminium body, powder-coated aluminium covers, nickel-plated steel shaft and stainless steel fasteners.

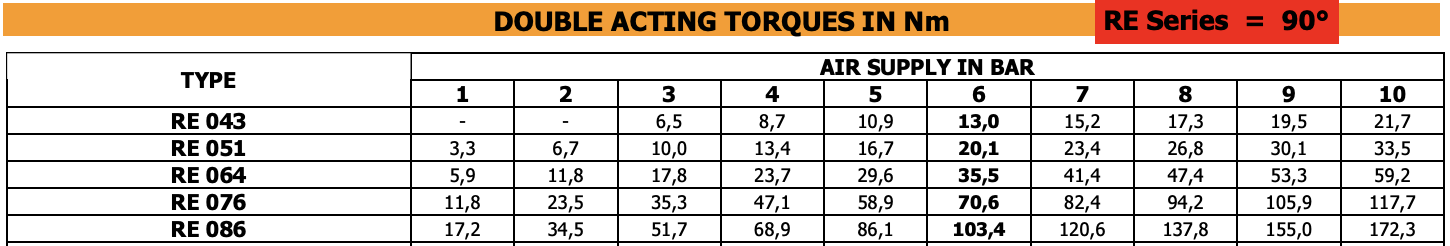

The overview updates with the selected model’s 6 bar catalogue torque, air-port nominal size, listed mounting and overall dimensions. Port thread form and the actual shaft/adaptor dimensions must be checked against the supplied unit and valve.

Mountings, valves and accessories

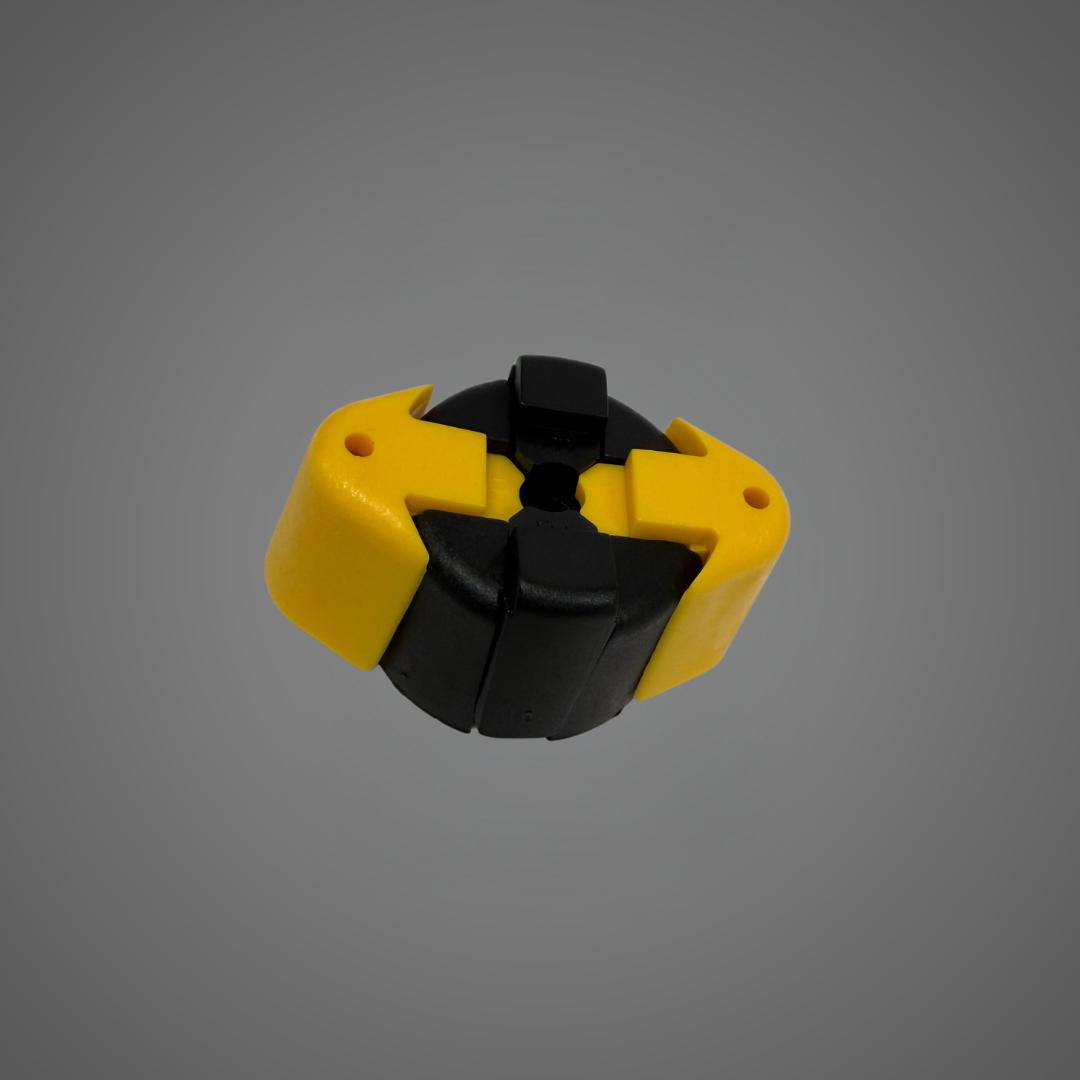

The Mounting & accessory options section shows relevant ATS ball valves, square and oval adaptors, indicators, positioner brackets and switch boxes, with live pricing and availability. Choose the exact option on its product page. Confirm torque, drive, flange, engagement, bracket and electrical requirements before ordering a complete assembly.

Stock availability and delivery

Check the selected variation’s current availability. In-stock actuators are supplied from our Christchurch stock, with delivery time additional. Contact ATS about complete valve assemblies, non-stock sizes and application requirements.

Technical downloads

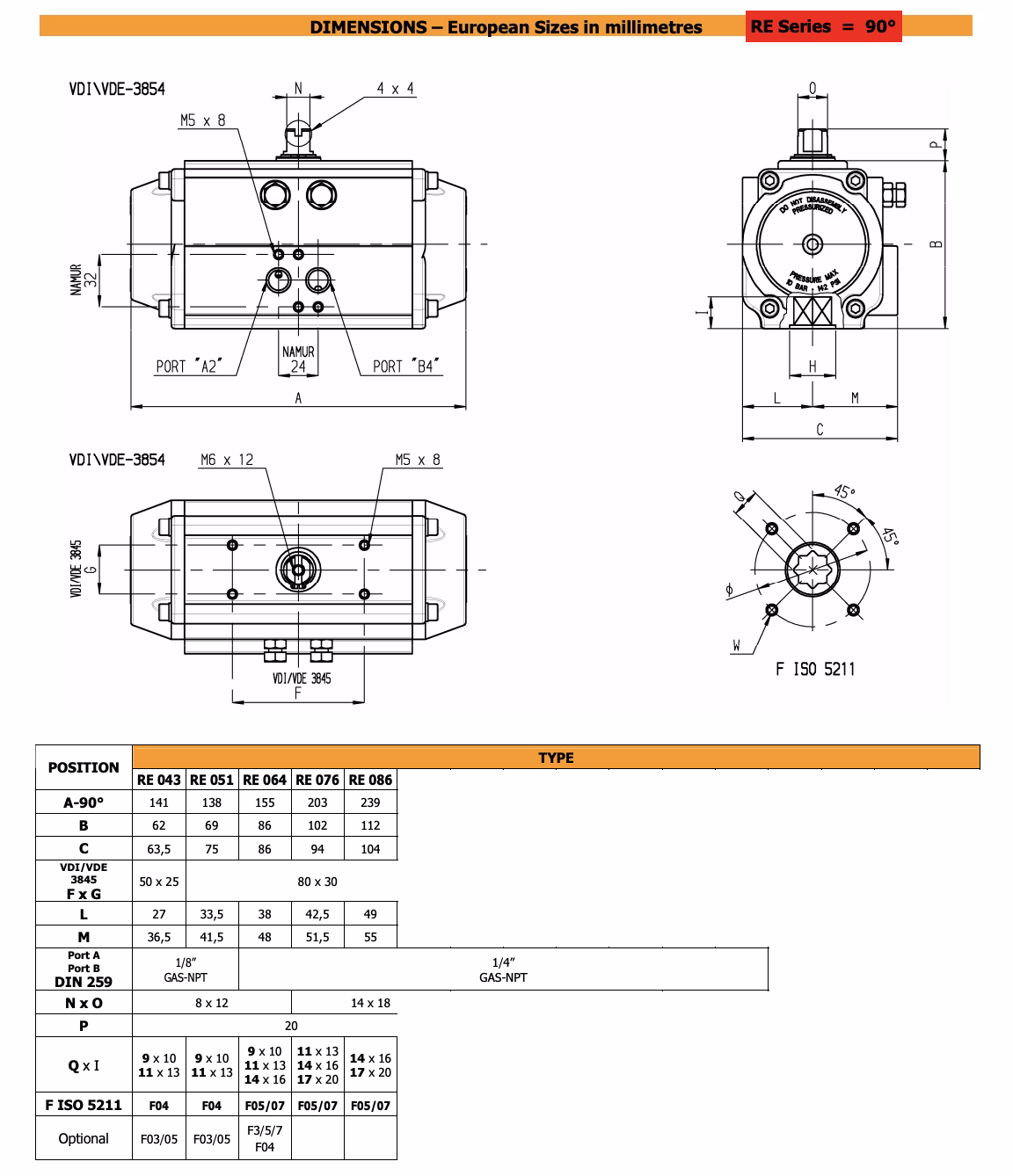

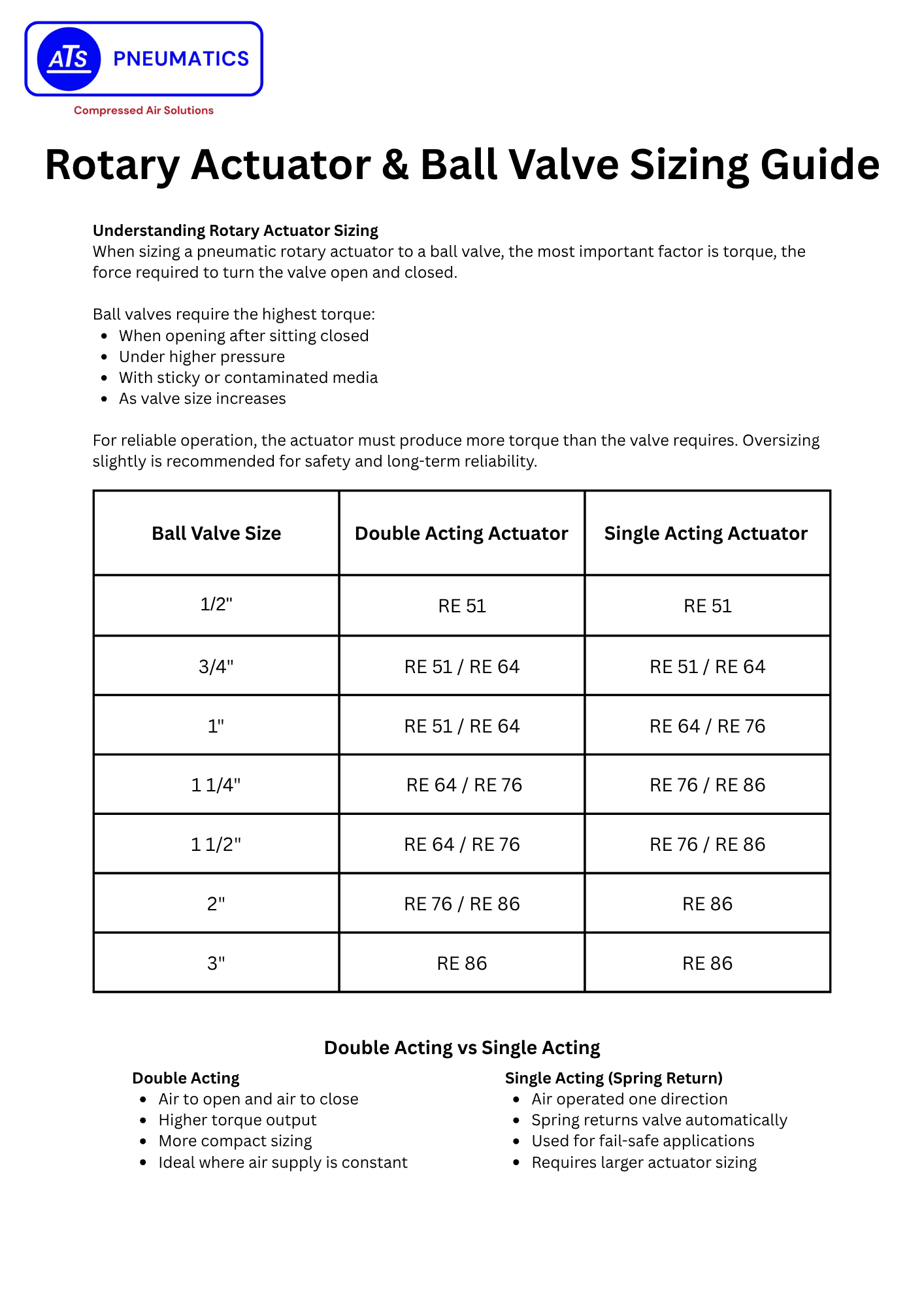

Use the Downloads section above for the ATS RE Spring-Return Technical Catalogue, the ATS RE Rotary Actuator Installation Manual, the ATS RE Mounting Accessories Catalogue, the ATS Rotary Actuator & Ball Valve Sizing Guide and the selected model’s Dimension Sheet. The catalogue includes torque tables, drawings, dimensions, mounting interfaces and an initial ball-valve sizing guide.

Need help choosing a rotary actuator?

Use Actuator sizing & replacement finder, or contact ATS with the valve type and size, process pressure, fluid, temperature, required torque, air pressure and mounting details.

Bore Size	51mm, 64mm, 76mm, 86mm, 101mm
Connection	F04, F05/F07, F05/F07, F05/F07, F07/F10
