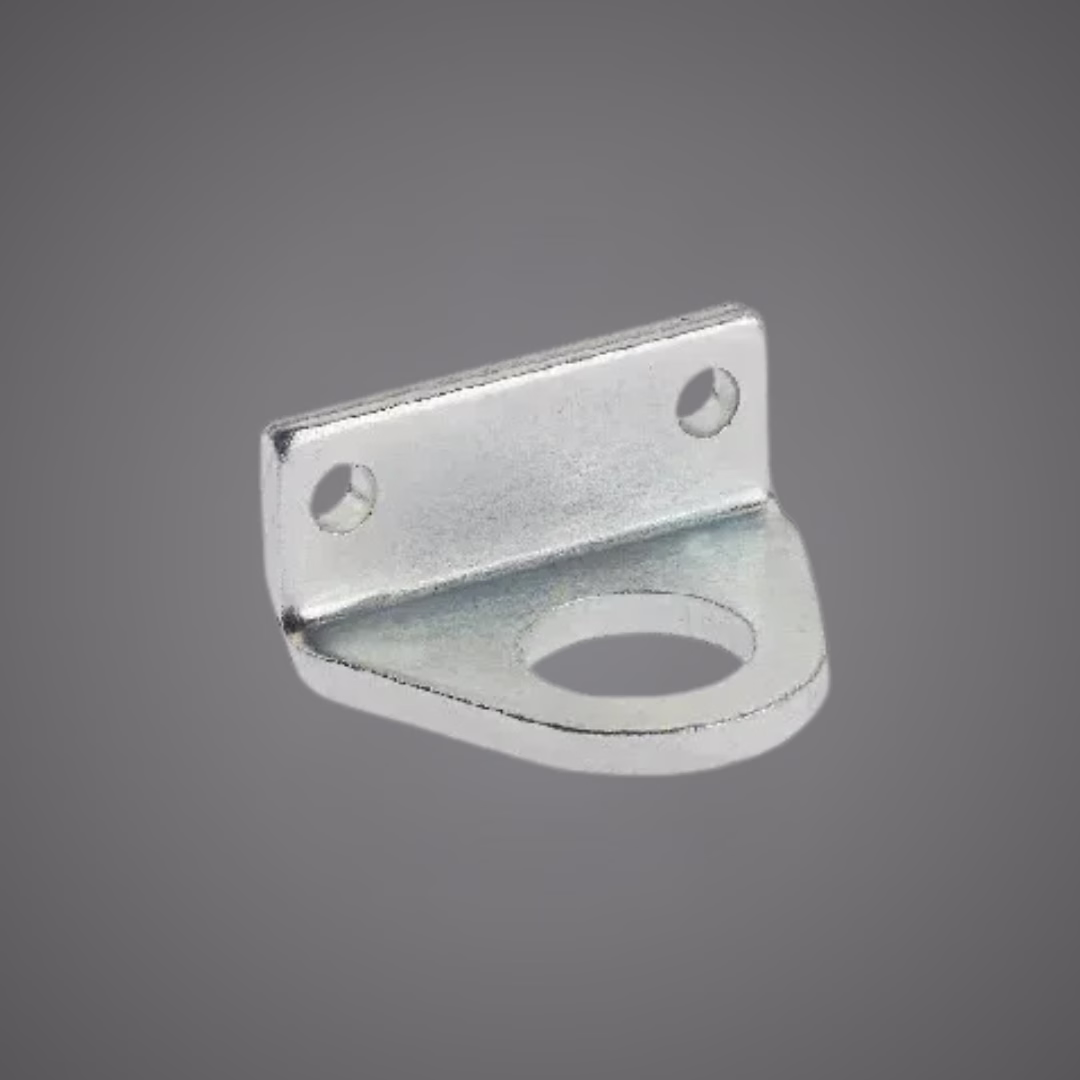

Mini Series Foot Mount

Mini Series Foot Mount — Aignep MPD

Choose the correct mounting

Check the cylinder’s end mounting interface, mounting-hole layout and required alignment. A complete installation may require more than one foot mount.

Compatible options shown in the cylinder configurator are priced separately.

Technical downloads

See the ATS Aignep Cylinder Mounting Accessories Catalogue for dimensional drawings and measurements.

Need help selecting a mounting?

Contact ATS with your cylinder series, bore, stroke and mounting arrangement. Our Christchurch team can help confirm the required mounts and quantities.
