Rear Right Angle Mount
Rear Right Angle Mount - Image 2

Rear Right Angle Mount

Price range: $89.27 through $274.92 +gst

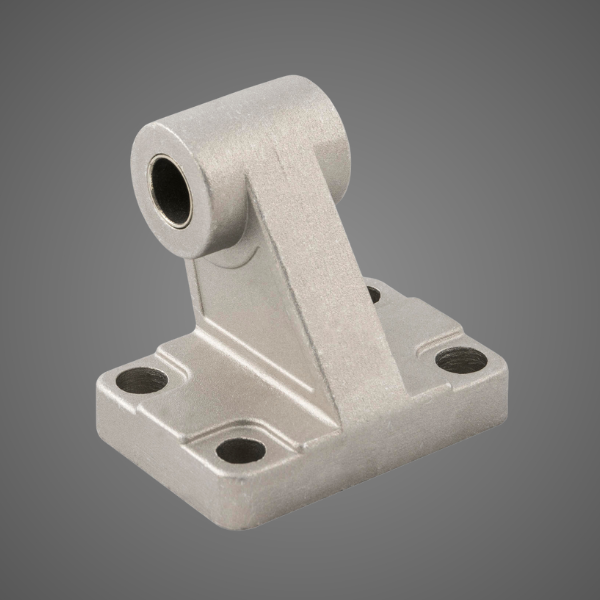

The Aignep VAS right-angle mount forms part of a compatible pivoting cylinder installation.

Features and specifications

Range: Aignep VAS.
Material: aluminium.
Mounting arrangement: right-angle pivot support.

See the ATS Aignep Cylinder Mounting Accessories Catalogue

SKU: VAS Category: Tags: , , ,

Available Options

ThumbnailSKUBore SizeStockPriceQuantity
VAS05050mm

Availability: 19 in stock

$104.38 +gst
VAS06363mm

Availability: 9 in stock

$117.32 +gst
VAS08080mm

Availability: 7 in stock

$167.38 +gst
VAS100100mm

Availability: 8 in stock

$274.92 +gst
VAS125125mm

Availability: 2 in stock

$246.32 +gst
VAS03232mm

Availability: 10 in stock

$89.27 +gst
VAS04040mm

Availability: 10 in stock

$94.62 +gst

Rear Right Angle Mount — Aignep VAS



Choose the correct mounting

Check the pivot diameter, mating-hinge geometry, mounting height and machine fixing dimensions. Confirm that the mating clevis, pin and support form a compatible assembly.

The installed support position affects the complete assembly’s fixing dimensions and overall envelope.

Technical downloads

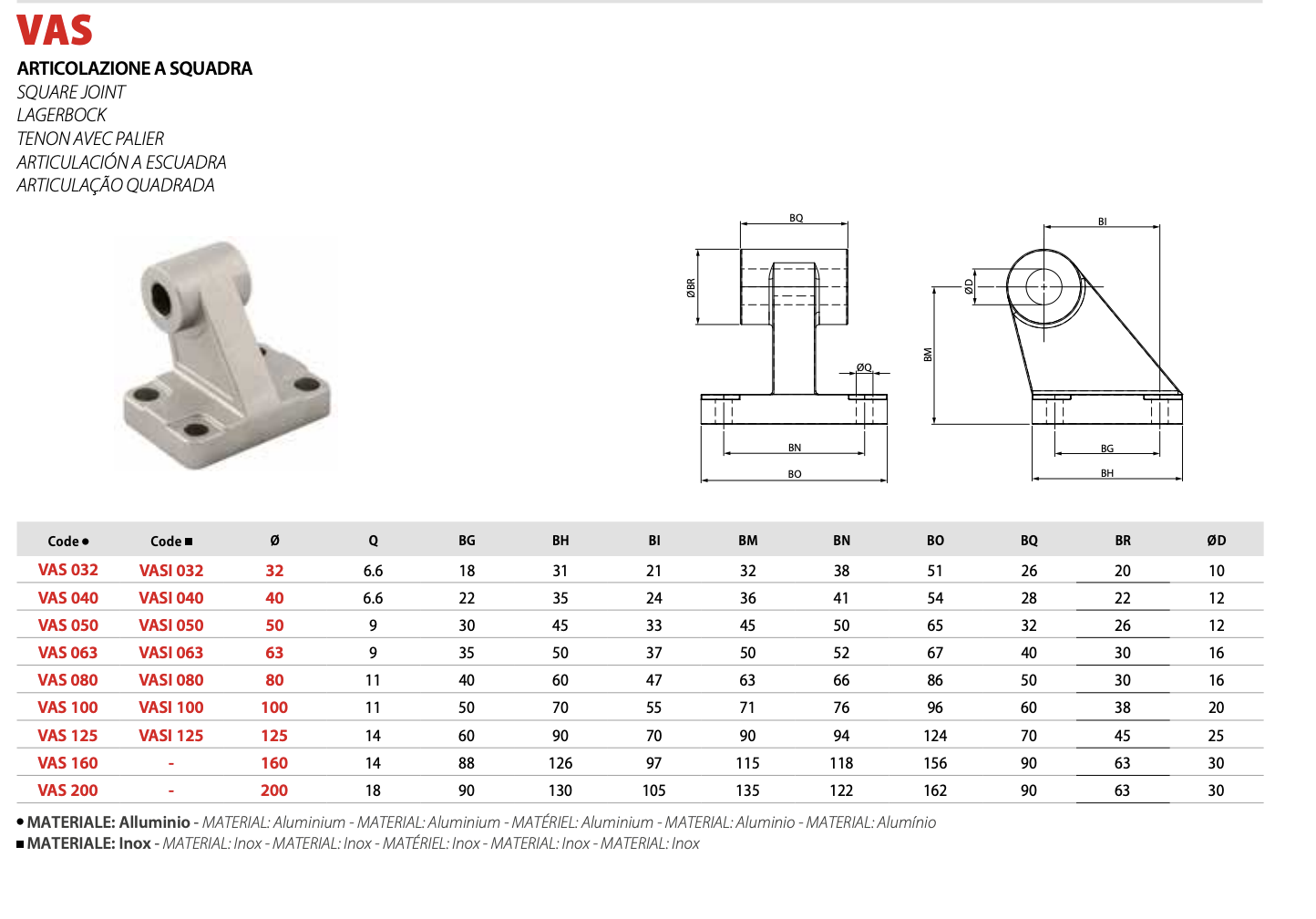

See the ATS Aignep Cylinder Mounting Accessories Catalogue for dimensional drawings and measurements.

Need help selecting a mounting?

Contact ATS with your cylinder series, bore and intended rear mounting arrangement. Our Christchurch team can help confirm the required components.
