Rear Clevis

Price range: $64.35 through $236.15 +gst

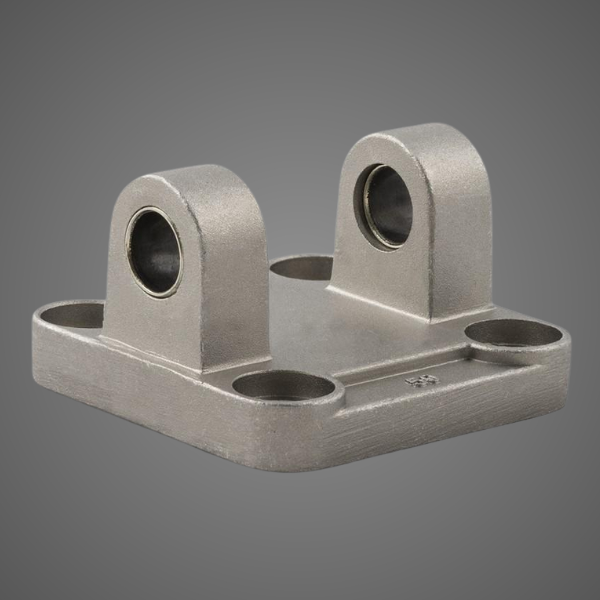

The Aignep VCF female rear clevis provides a pivoting mounting arrangement for a compatible pneumatic cylinder body.

Features and specifications

Range: Aignep VCF.
Material: aluminium.
Bearings: self-lubricating bushes.
Mounting arrangement: female rear hinge.

See the ATS Aignep Cylinder Mounting Accessories Catalogue

Available Options

ThumbnailSKUBore SizeStockPriceQuantity
VCF03232mm

Availability: 10 in stock

$64.35 +gst
VCF04040mm

Availability: 19 in stock

$66.01 +gst
VCF05050mm

Availability: 13 in stock

$72.68 +gst
VCF06363mm

Availability: 4 in stock

$97.51 +gst
VCF08080mm

Availability: 10 in stock

$108.36 +gst
VCF100100mm

Availability: 4 in stock

$138.48 +gst
VCF125125mm

Availability: 3 in stock

$236.15 +gst

Rear Clevis — Aignep VCF



Choose the correct mounting

Check the cylinder’s end mounting pattern, pivot width and mating pin. Use a correctly matched VPE pin and retention arrangement where required.

Compatible options shown in the cylinder configurator are priced separately.

Technical downloads

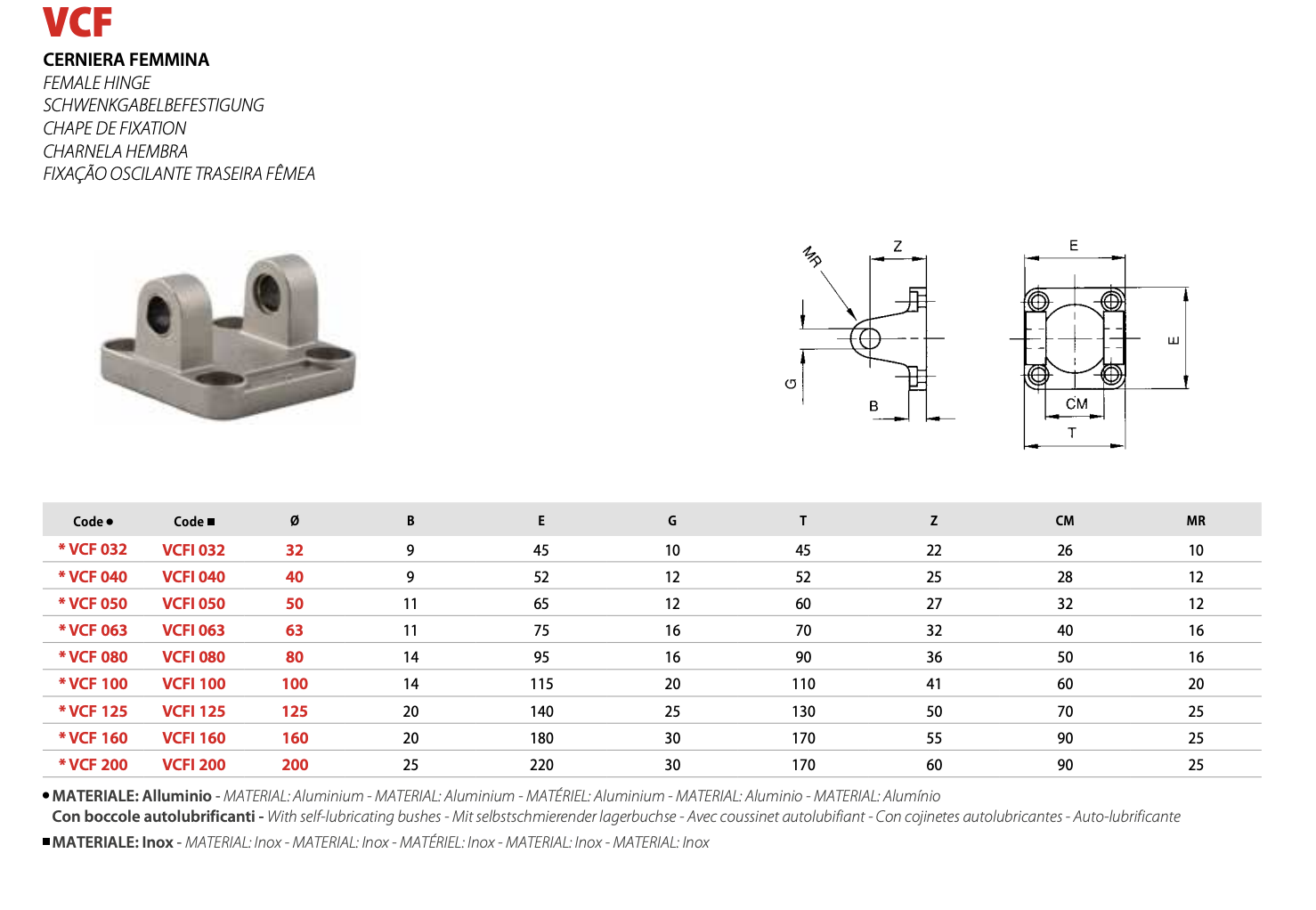

See the ATS Aignep Cylinder Mounting Accessories Catalogue for dimensional drawings and measurements.

Need help selecting a mounting?

Contact ATS with your cylinder series, bore and rear mounting arrangement. Our Christchurch team can help confirm the clevis, pin and mating components.

Bore Size

32mm, 40mm, 50mm, 63mm, 80mm, 100mm, 125mm
