Narrow Hinge

Name: Narrow Hinge
SKU: VCD
Availability: InStock

Price range: $59.72 through $94.21 +gst

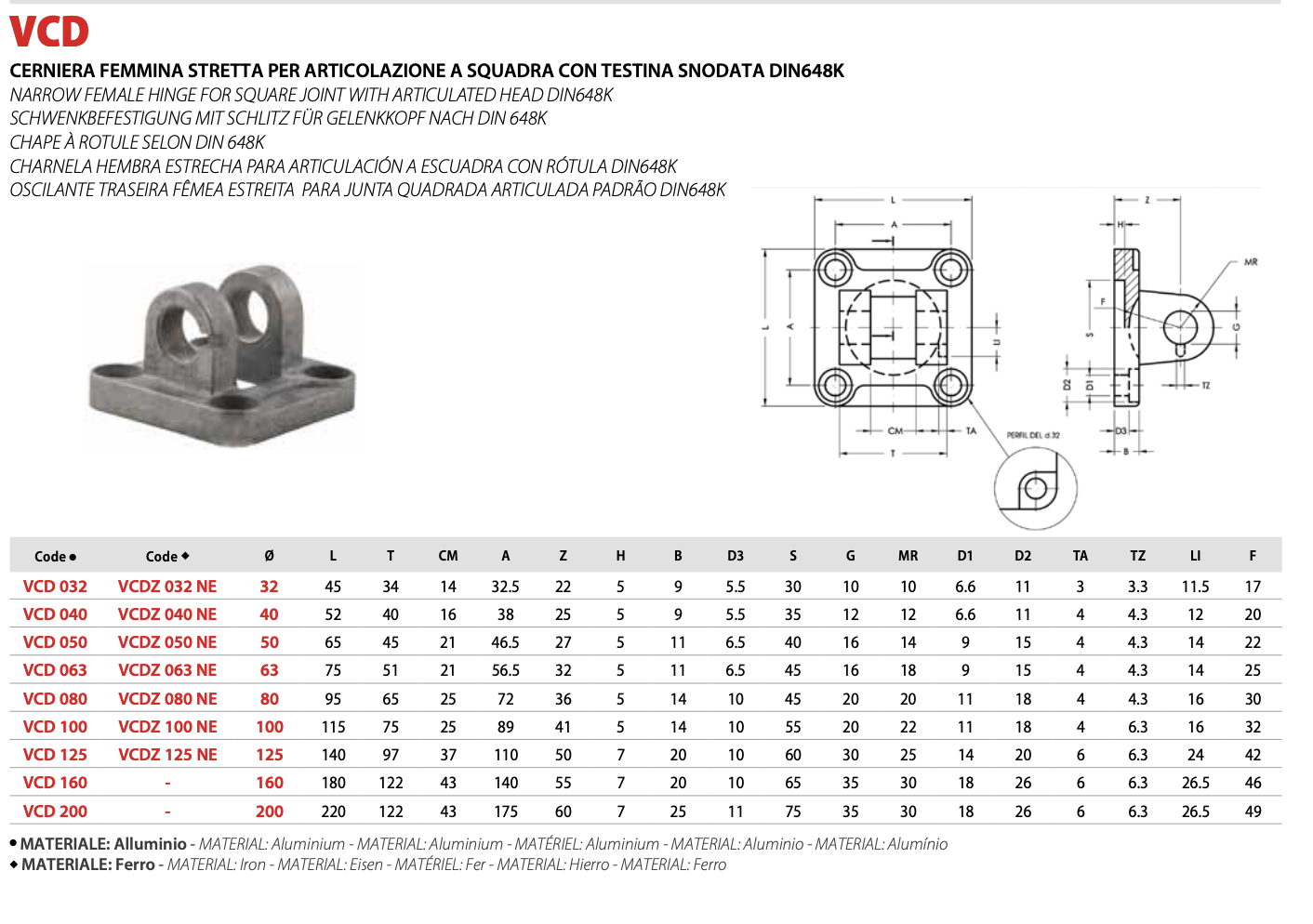

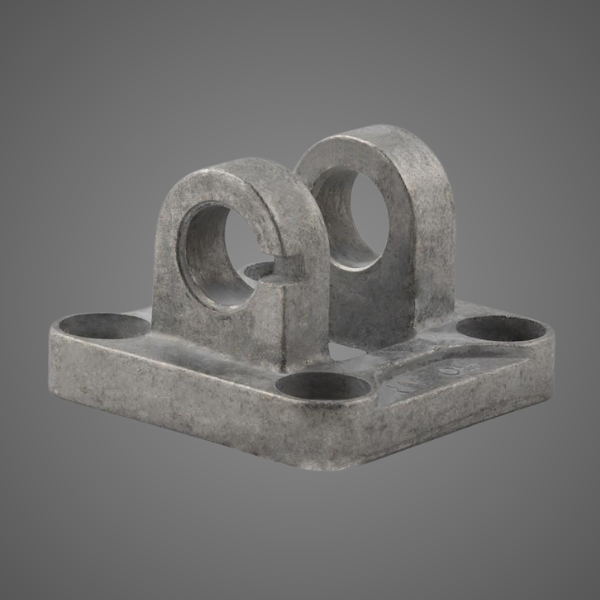

The Aignep VCD narrow female hinge is used in a compatible square-joint articulated-head mounting arrangement.

Range: Aignep VCD.
Material: aluminium.
Head reference: DIN 648K articulated-head arrangement.

Available Options

SKU	Bore Size	Stock	Price	Quantity
VCD032	32mm	Availability: 1 in stock	$59.72 +gst	Narrow Hinge quantity
VCD040	40mm	Availability: 4 in stock	$66.01 +gst	Narrow Hinge quantity
VCD050	50mm	Availability: 4 in stock	$72.68 +gst	Narrow Hinge quantity
VCD063	63mm	Availability: 5 in stock	$94.21 +gst	Narrow Hinge quantity
VCD080	80mm	Out of stock	$93.79 +gst	Narrow Hinge quantity
VCD100	100mm	Availability: 2 in stock	$88.73 +gst	Narrow Hinge quantity

Match the articulated head, mating mount and pin. Check the pivot width, mounting-hole pattern and available movement.

Confirm the required VPS pin and retention arrangement where applicable. Compatible options shown in the cylinder configurator are priced separately.

Contact ATS with your cylinder series, bore and mating-component details. Our Christchurch team can help confirm a suitable arrangement.

Bore Size	32mm, 40mm, 50mm, 63mm, 80mm, 100mm
